A Series

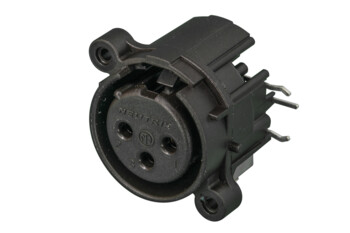

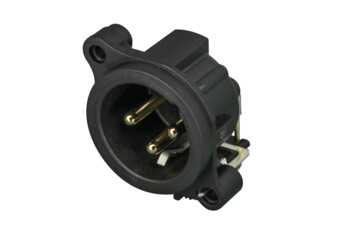

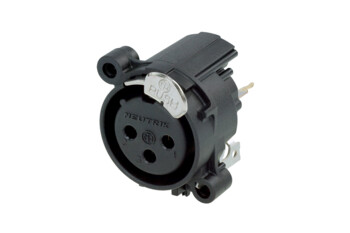

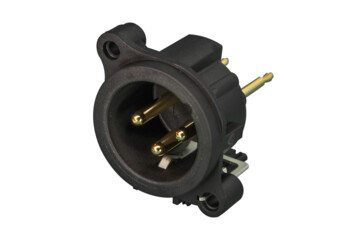

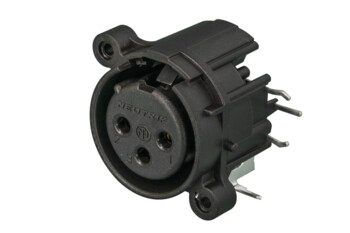

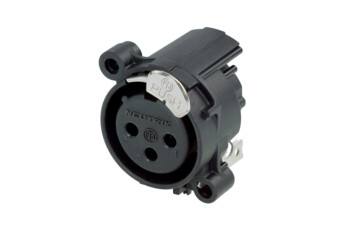

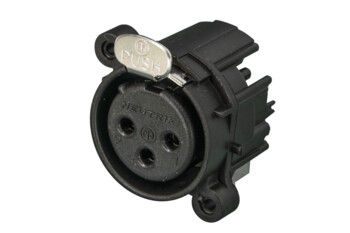

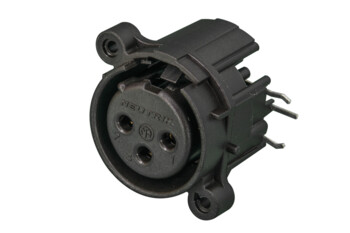

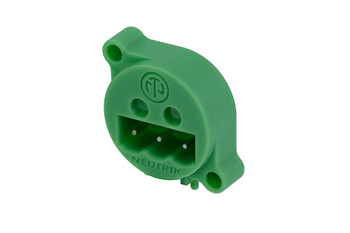

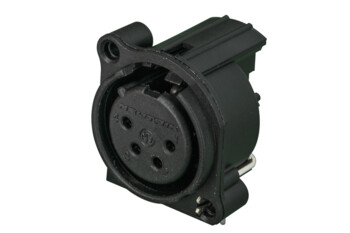

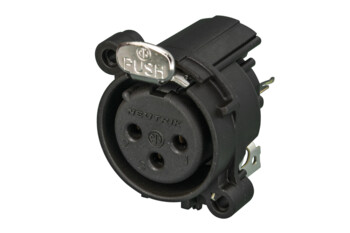

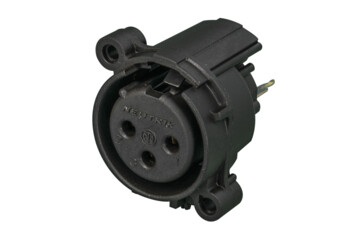

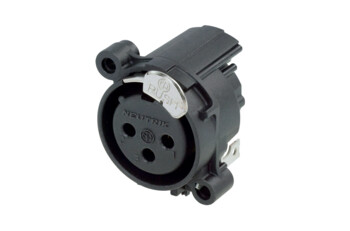

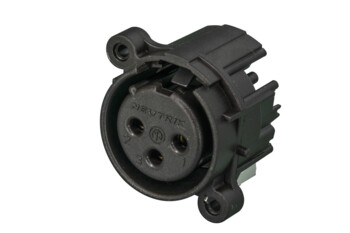

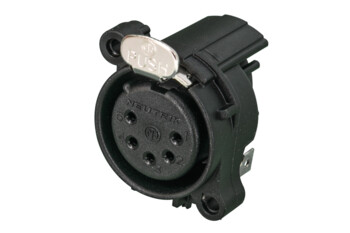

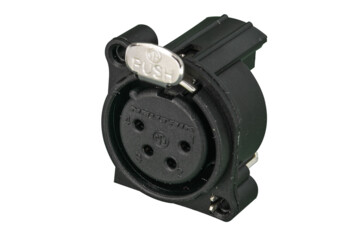

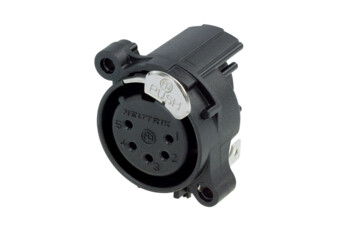

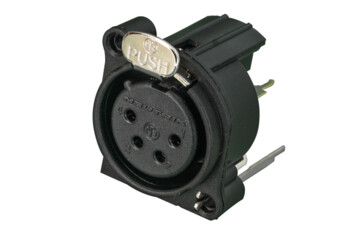

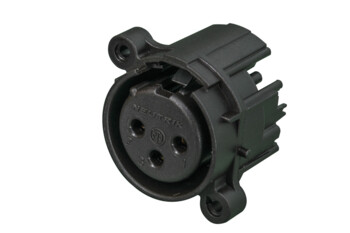

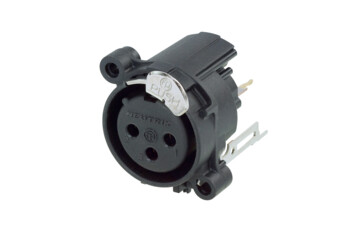

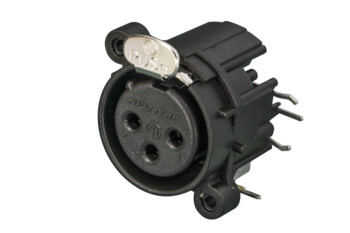

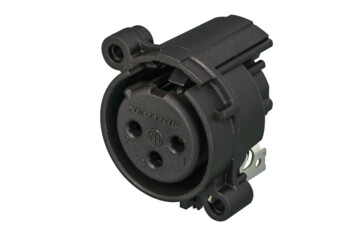

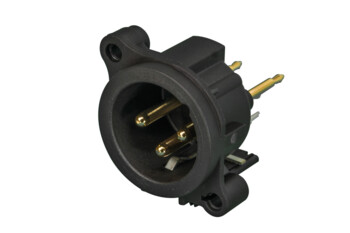

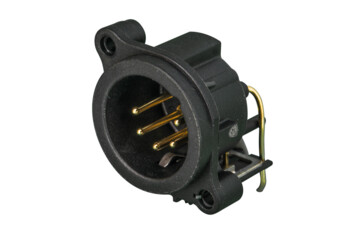

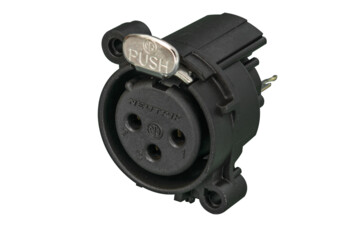

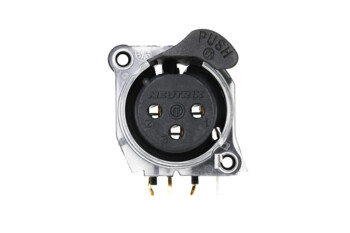

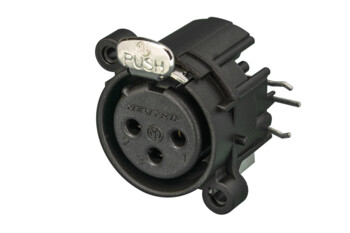

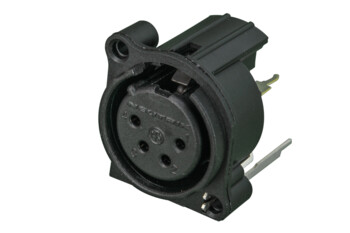

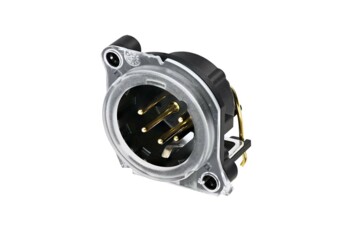

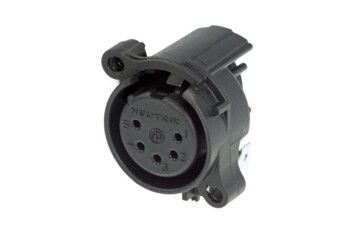

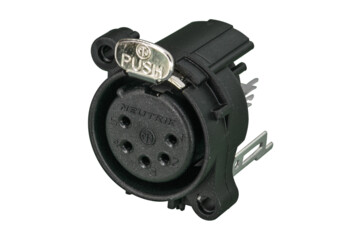

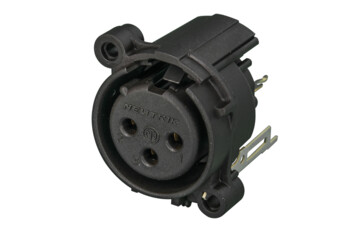

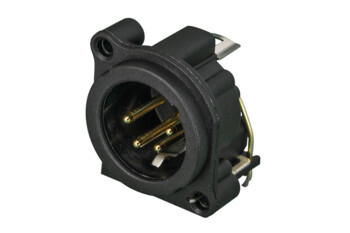

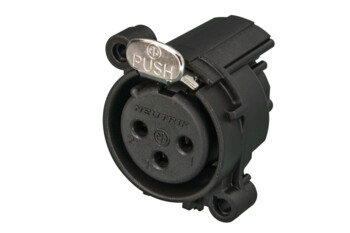

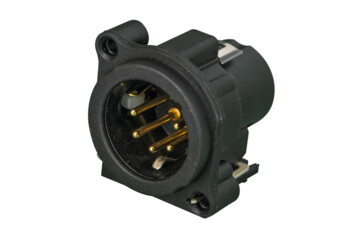

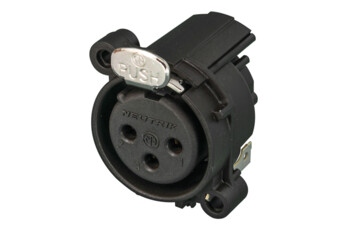

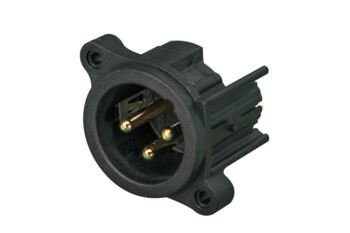

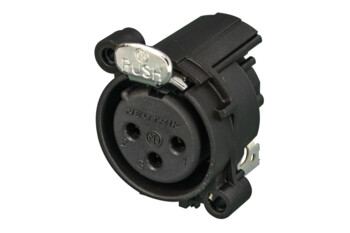

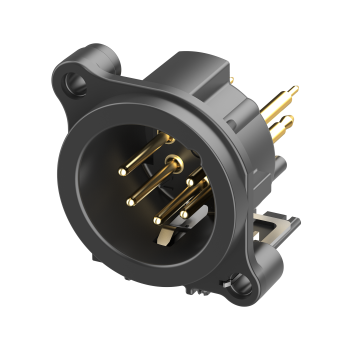

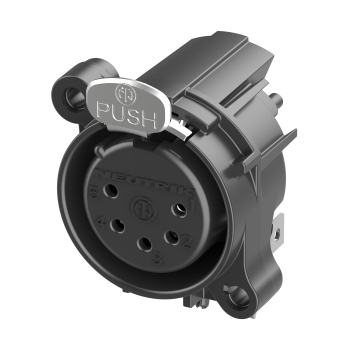

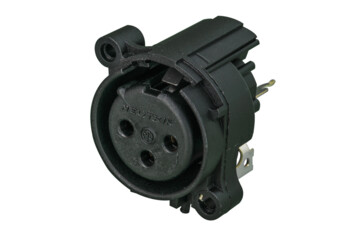

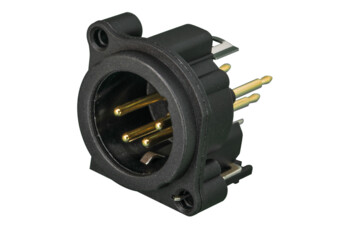

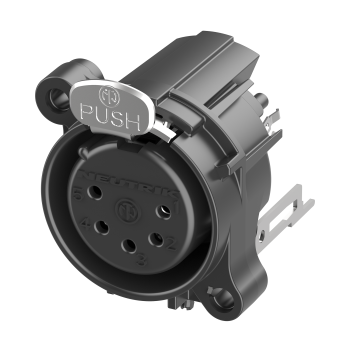

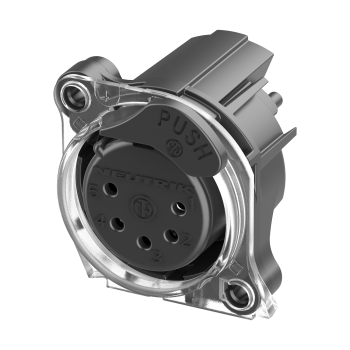

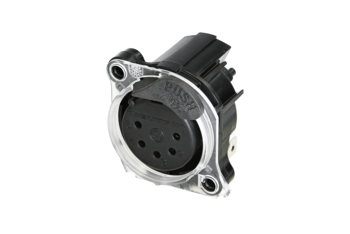

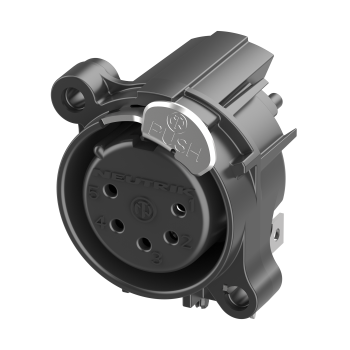

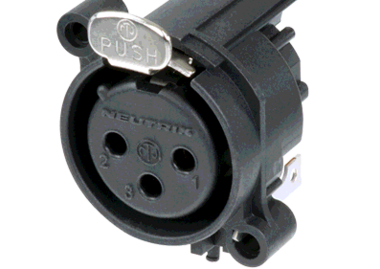

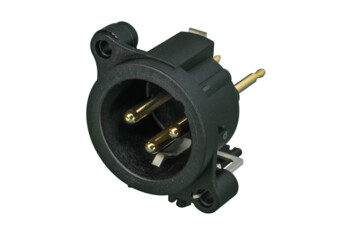

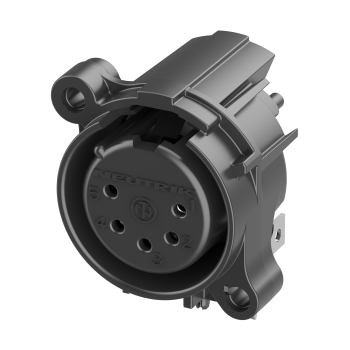

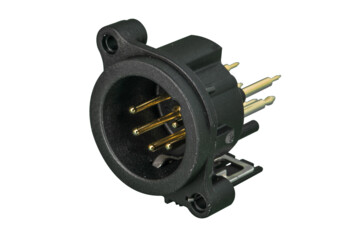

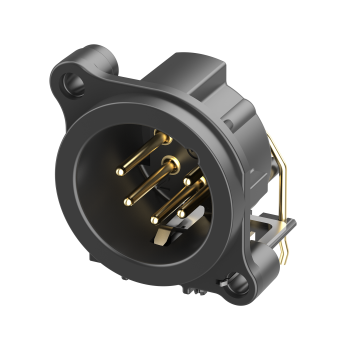

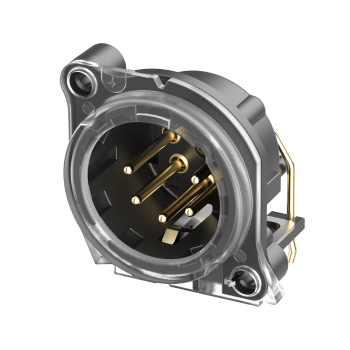

The 'State of the Art' receptacle. Round plastic body XLR pcb mount panel connector. These have the smallest size and highest packing density (23mm between centres). New designed tulip type female contact on 3 pin versions and fork type on 4 and 5 pole female connectors with hard gold plating and polished contact areas. Variety of grounding options and termination facilities.

Termination
V = vertical pcb mount, straight pins
H = horizontal pcb mount, angled pins
HL = lateral left pcb mount
HR = lateral right pcb mount

Locking mechanism
-0 = no latch, retention spring
No suffix = latch lock

Grounding options

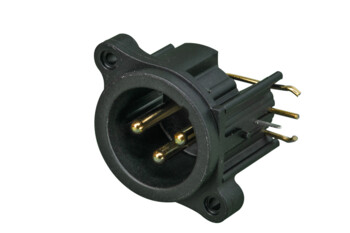

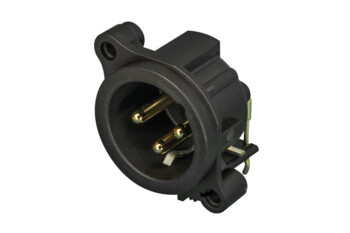

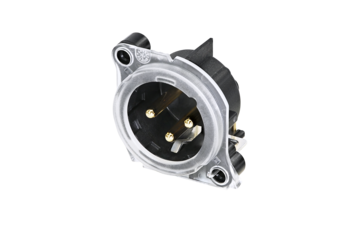

Male connector
-0, L, R = ground contact connected to shell ground, but not to front panel and Pin 1
w/o suffix = separate ground contact to mating connector shell and front panel

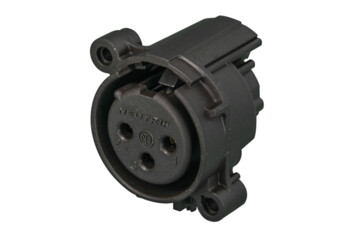

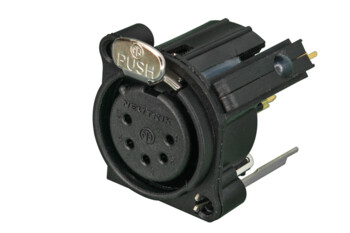

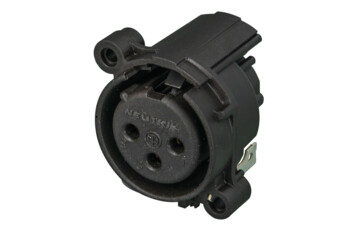

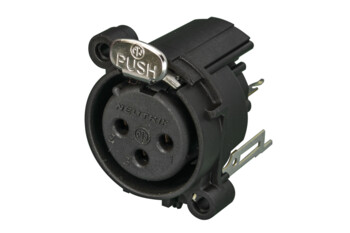

Female connector
-1 = mating connector shell to pin1 and front panel
-2 as well as 4 and 5 pole versions = separate ground contact to mating connector shell and front panel
w/o suffix = without ground / shell contact

Rear panel mount

Panel fastening
Self-tapping PLASTITE®* screw with thread 2.9x1.06 and of tri-rondular configuration (A-screw)
*PLASTITE® is a registered trademark of SFS Unimarket

Panel thickness 1 - 3 mm
