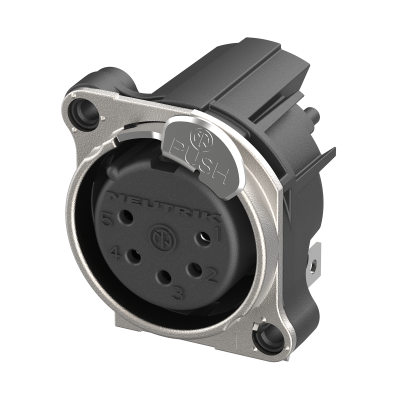

XLR_NC5FBH1-DA_front view

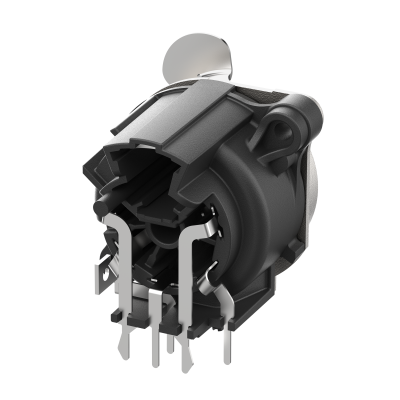

XLR_NC5FBH1-DA_back view
1/2
neutrik-us / Products / XLR Connectors / XLR Chassis Connectors / B Series / NC5FBH1-DA

NC5FBH1-DA

Download Data Sheet

This series not only stands out with its proven features such as a compact design, flame retardancy in accordance with UL94-V0, and excellent electrical performance but also incorporates an innovative, enhanced contact system. This new design offers additional advantages, particularly in terms of vibration resistance. Thanks to these improvements, the new products are perfectly suited to meet the demands of challenging applications, providing you with reliable solutions for your needs.

Features & Benefits
  • Smallest XLR receptacles
  • highest packing density
  • New enhanced contact system
  • Metal mounting flange featuring continuous circumferntial ground contact to chassis for best EMC and RF protection
  • Flame retardant (V0, halogen free)
Downloads
3D Model NC5FBH1-DA (STP)
stp - 5.65 MB
3D Drawing NC5FBH1-DA (PDF)
pdf - 1.9 MB
Drawing NC5FBH1-DA (PDF)
pdf - 397.22 KB
Drawing NC5FBH1-DA (DXF)
dxf - 2.06 MB
Product Manual - XLR Chassis Connector B Series 5-Pole
pdf - 1.59 MB

Technical Information

Product
Title NC5FBH1-DA
Product family xlrCON
Connection type chassis connector
Gender female
Electrical
Capacity between contacts ≤ 7 pF
Contact resistance ≤ 12 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 3 A
Rated voltage acc. to UL1977 50 VAC
Grounding Options Seperate ground contact connected to mating connector shell and front panel, no connection to Pin 1
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime min. 1000 mating cycles
Locking device Latch lock
Wiring Horizontal PCB mount
Chassis shape B
Mounting direction rear mounting
Mounting A-Screw
Material
Contact Bronze (CuSn6)
Contact plating partial gold / Ni / Tin
Insert PA66
Locking element Steel Ck67
Locking element plating Nickel
Ring Zinc diecast (ZnAl4Cu1)
Ring plating Nickel
Environmental
Flammability UL 94 V0
Standard compliance IEC 61076-2-103
Solderability Complies with IEC 60068-2-20
Temperature range -30 °C to +80 °C
Accessories
audio
A-SCREW-1-8

Black self tapping PLASTITE® screw 2.9 x 1.05 tri-rondular configuration, 8 mm long, panhead

audio
ACRF-*

Color coding rings for female receptacles

CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

audio
NDF

dummyPLUG for Neutrik female XLR receptacles

audio
SCF

Dust protection cover for female chassis connectors
