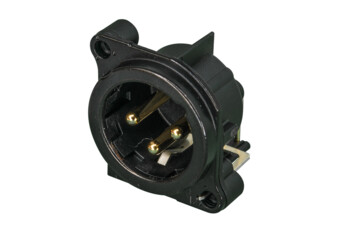

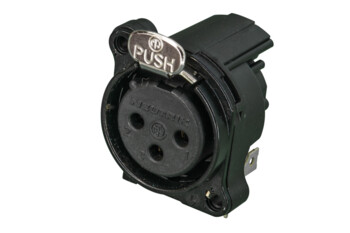

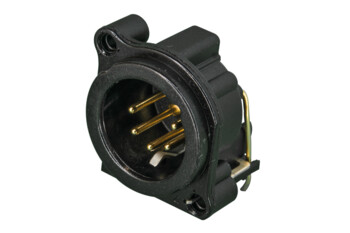

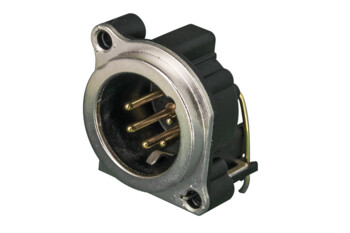

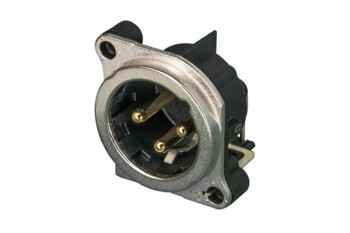

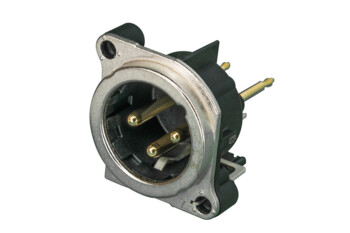

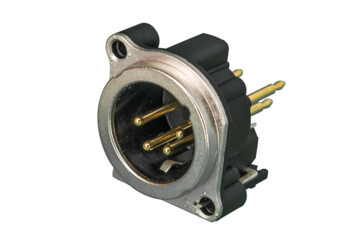

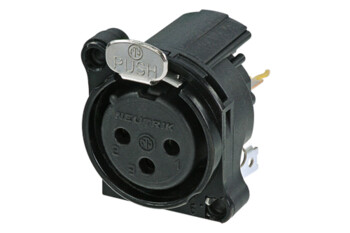

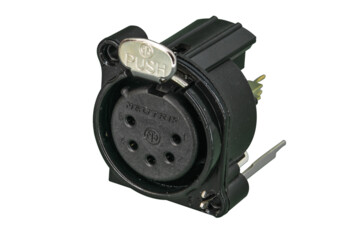

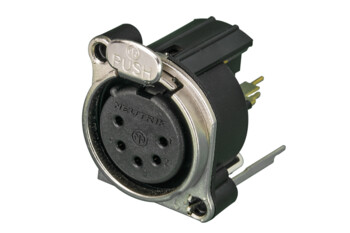

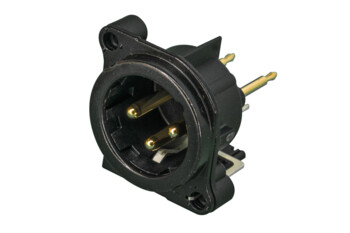

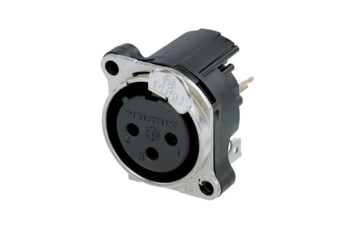

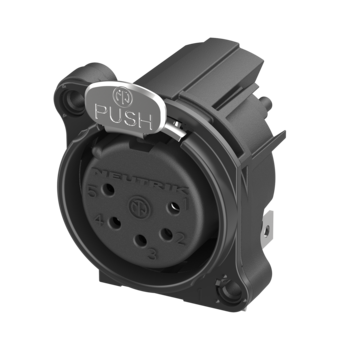

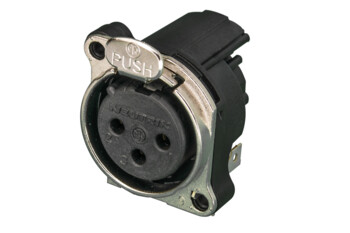

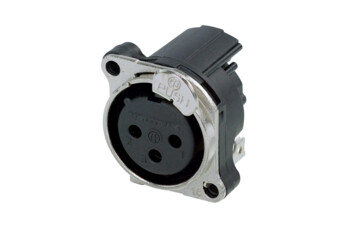

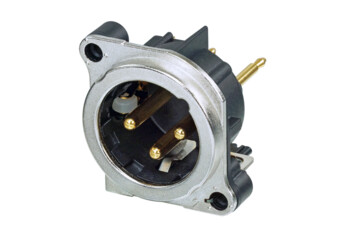

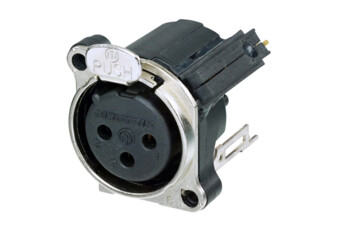

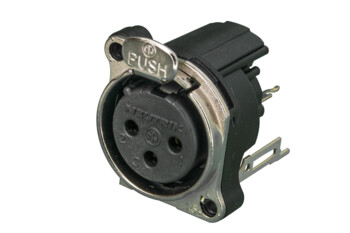

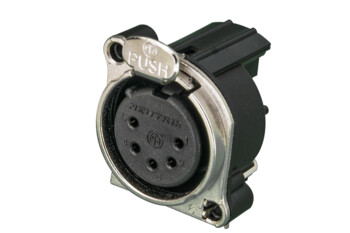

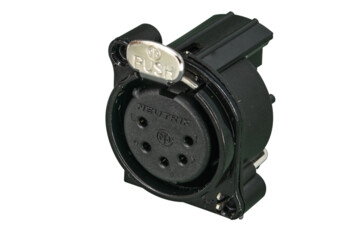

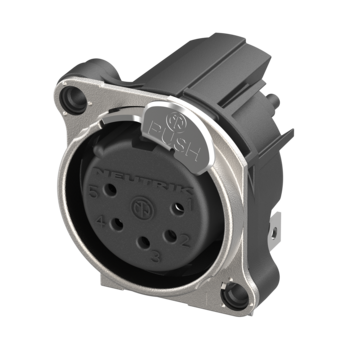

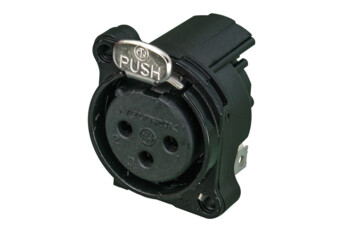

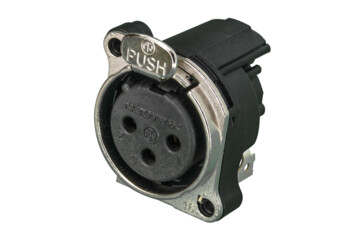

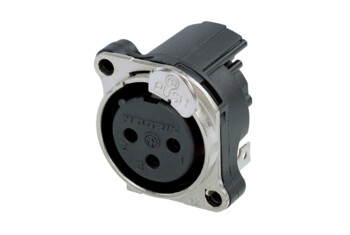

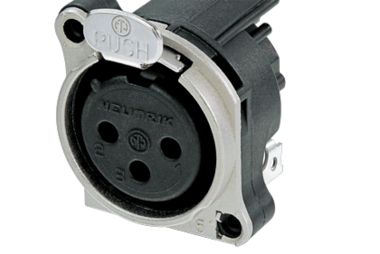

B Series

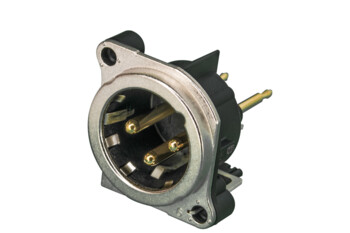

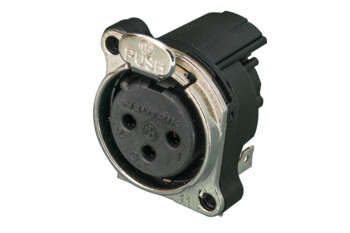

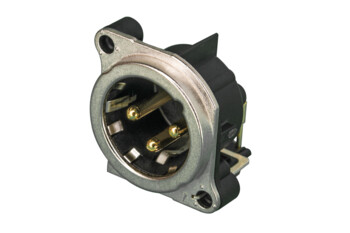

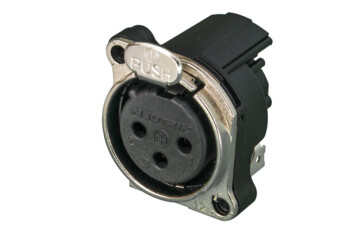

Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. Available as 3 pole female and male connectors including a special version with 8 ground contacts (-E) for best conductivity of mating shell to ground.

Termination

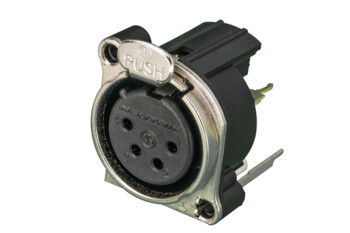

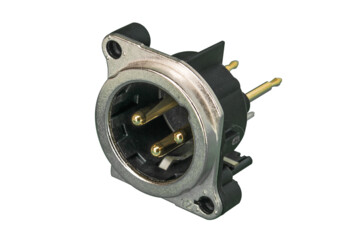

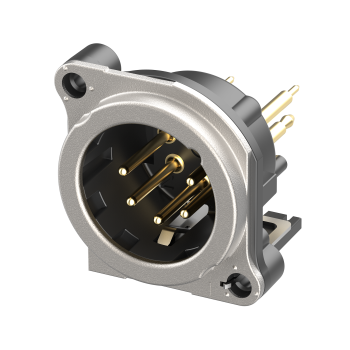

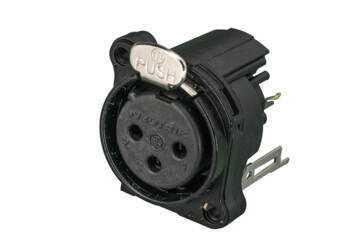

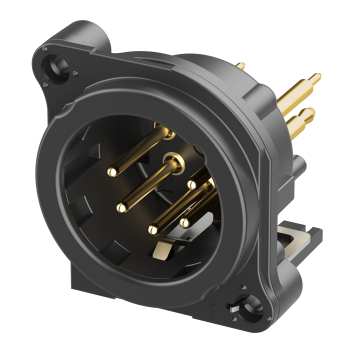

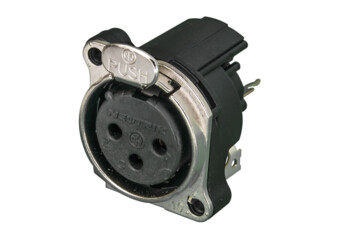

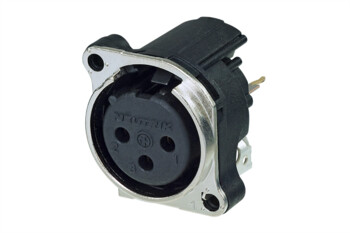

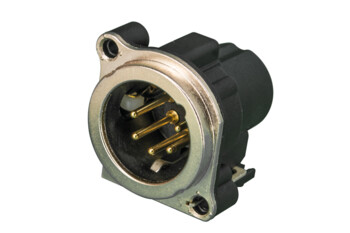

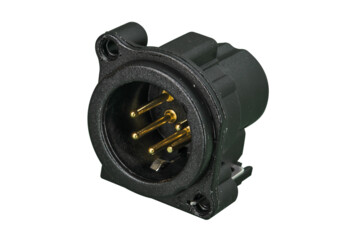

V = vertical pcb mount, straight pins

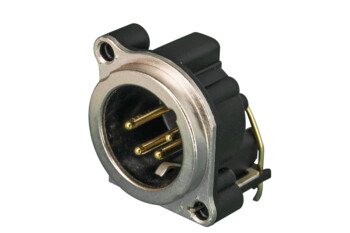

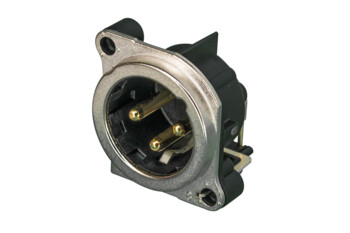

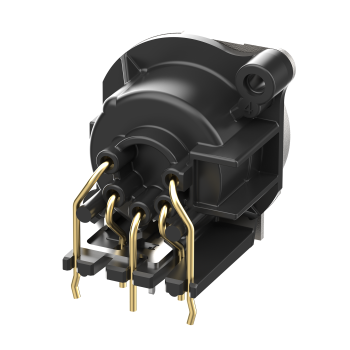

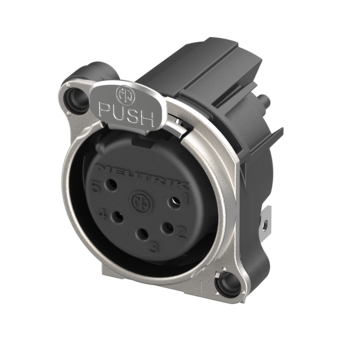

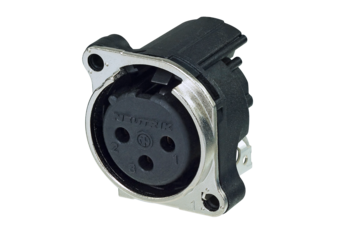

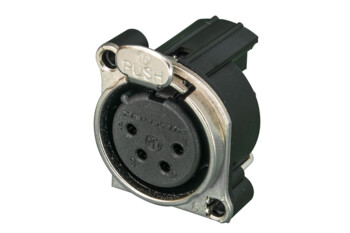

H = horizontal pcb mount, angled pins

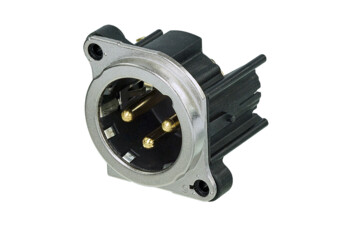

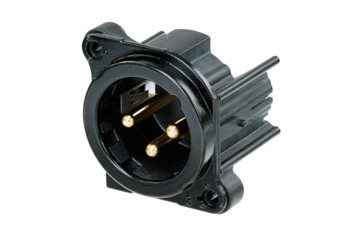

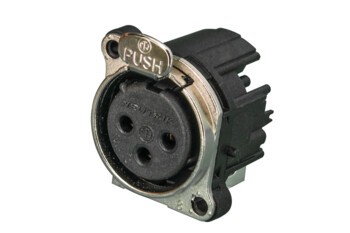

HL = lateral left pcb mount

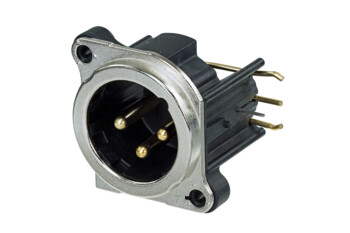

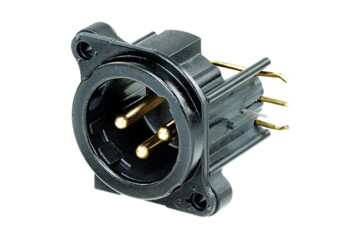

HR = lateral right pcb mount

Locking mechanism
-0 = no latch, retention spring
No suffix = latch lock

Grounding options

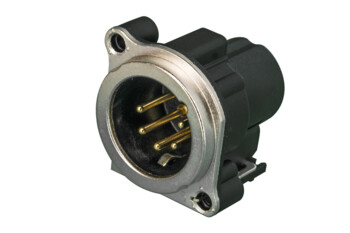

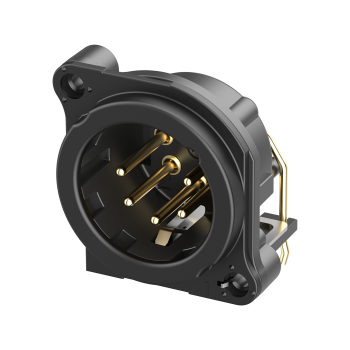

Male connector
-0 = ground contact connected to shell ground, but not to front panel and Pin 1
-1 = mating connector shell to pin1 and front panel
w/o suffix = separate ground contact to mating connector shell and front panel

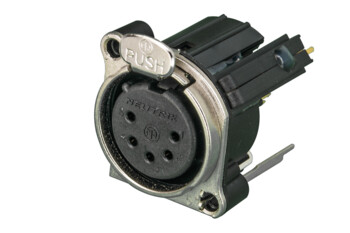

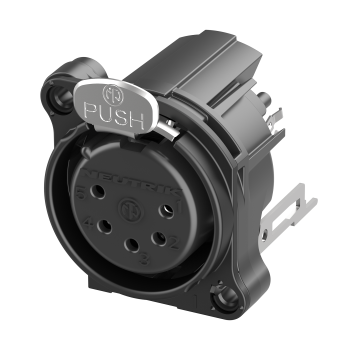

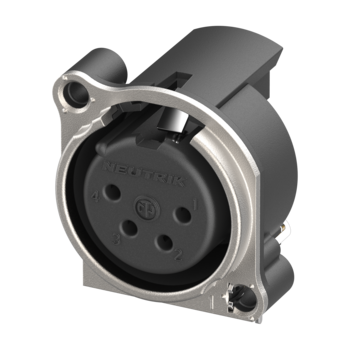

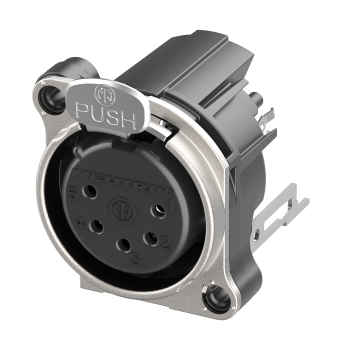

Female connector
-1 = mating connector shell to pin1 and front panel

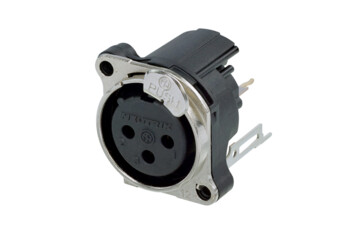

-2 = separate ground contact to mating connector shell and front panel
w/o suffix = without ground / shell contact

Rear panel mount

Panel fastening with selftapping TAPTITE® screws M2.5 DIN7500 (B-screw)

Panel thickness 1 - 3 mm
