NBTB75
neutrik-us / Products / NBTB75CNN5

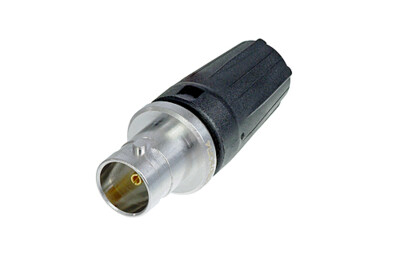

NBTB75CNN5

Download Data Sheet

*** DISCONTINUED ***

Neutrik's BNC tiny cable jack is based on the rearTWIST principe and is suitable for thin coaxial cables. The cable jacks endue the reliable bayonet locking which can be turned form the back so that there is less engaging torque. This guarantees easy access even in high density applications. The tiny cable jack is the perfect solution for extensions and Y-cables.

Like all Neutrik BNCs it offers a true 75 Ω design and is perfectly suitable for HD applications.

Suitable cables:
Draka 0.41/1.9 AF, Draka 753-1104, Draka 755-1101, Draka 755-1103, Extron BNC 5 HR(P) (Bulk)

Crimp size:
Pin: 1.6 mm (square)
Shield: 4.53 mm (hex)

Features & Benefits
  • Ideal for recessed bulkheads where access to the "head" of the connector might be an issue. These connectors turn from the back and not the front.
  • True 75 Ω design meets the stringent HD requirements
  • Perfect solution for Y-cables and extensions
  • Optimized assembly for mutlicore or tiny cables
  • Snug-fit center pin assembly provides tactile feedback
  • Excellent cable protection and retention
  • Precise machined brass parts for outstanding durability
  • Accessories include color coded boots in 10 standard colors, crimp tool and dies
Downloads
nbtb75c-1
pdf - 36.55 KB
nbtb75c-2
dxf - 16.56 KB
bnc-cable_jack_tiny
pdf - 1.92 MB
BNC Cable and Connector Guide
pdf - 627.89 KB
05 Section BNC Connectors PG 202311 EN -V25
pdf - 3.94 MB

Technical Information

Product
Title NBTB75CNN5
Connection Type BNC 75 Ω
Gender female
Electrical
Contact resistance ≤ 3 mΩ (inner)
Contact resistance ≤ 2 mΩ (outer)
Dielectric strength 0,75 kVdc
Impedance 75 Ω
Insulation resistance > 5 GΩ
Rated voltage <50 V
VSWR ≤1.050/>32 dB up to 1 GHz
≤1.065/>30 dB up to 2 GHz
≤1.100/>26 dB up to 3 Ghz
Mechanical
Cable O.D. 3.1 mm
Cable retention > 30 N (Center)
Crimp size 4,53 Hex crimp (shield) acc. IEC 60803 (die designation C)
Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Bayonett
Cable anchoring Jacket crimping
Material
Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert PTFE
Shell Brass (CuZn39Pb3)
Shell plating Optalloy®
Environmental
Temperature range -30 °C to +85 °C
Contact crimpability Complies with IEC 60803 and IEC 60352-2
Accessories
video
BST-BNC-*

Colored boots for rearTWIST BNC cable connectors

video
CAS-BNC-T

BNC tool kit including the ideal working tools for the assembly of our BNC cable connectors

video
DIE-BNC-JD

Crimp tool die for HX-BNC Pin crimping: 1.6 mm Shield and jacket: HEX crimp 5.41 mm (A), 4.53 mm (B)

industrial
DIE-R-BNC-PDC

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 4.53 mm (B), 4.06 mm (C)

video
HX-BNC

Crimp tool, frame ATTENTION: Suitable dies are DIE-BNC-*

HX-R-BNC

Crimp tool, frame ATTENTION: Suitable dies are DIE-R-* and DIE-R-BNC*

video
PT-BNC

Cable cutting tool for coax cable used with BNC connectors
