CAS-BNC-T
neutrik-us / Products / CAS-BNC-T

CAS-BNC-T

Download Data Sheet

BNC tool kit which includes the ideal working tools for the assembly of our BNC Cable Connectors.

  • Case (322x253x70 mm)
  • Crimp tool HX-R-BNC
  • Pliers Tool PT-BNC
  • Coax Cable Stripper CS-BNC-RT
  • Accessories: Shield Spreading Tool, Allen Wrench
  • Assembly Instructions



Crimp dies DIE-R-BNC-* have to be ordered separately.

Downloads
bnc-shield-spreading-tool
pdf - 169.65 KB

Technical Information

Product
Title CAS-BNC-T
Mechanical
Wiresize
Accessories
industrial

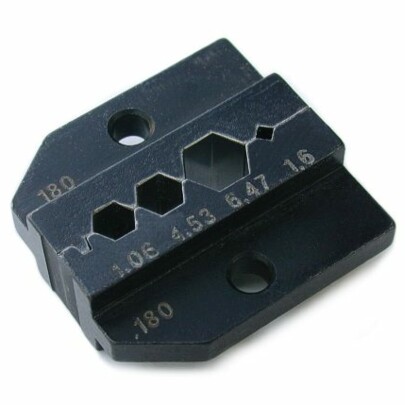

DIE-R-BNC-PDC

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 4.53 mm (B), 4.06 mm (C)

video
DIE-R-BNC-PG

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 5.00 mm (B)

audio

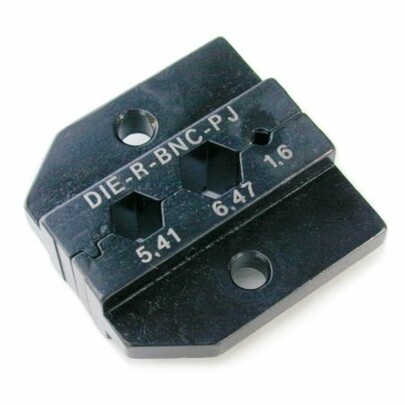

DIE-R-BNC-PJ

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 5.41 mm (B)

industrial

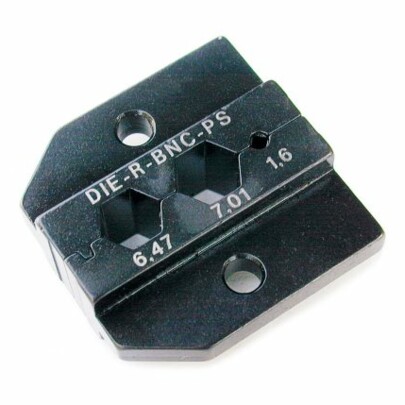

DIE-R-BNC-PS

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 7.01 mm (B)

video

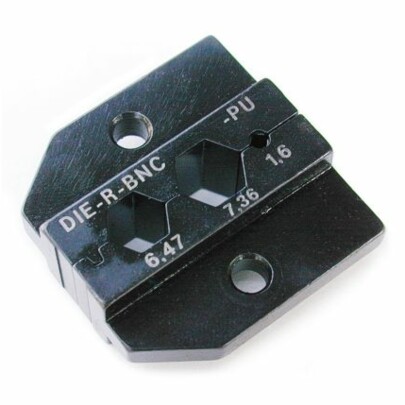

DIE-R-BNC-PU

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 7.36 mm (B)

video

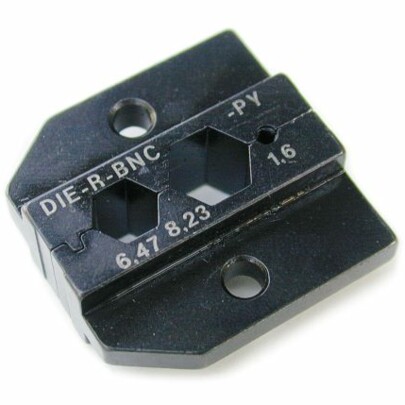

DIE-R-BNC-PY

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 8.23 mm (B)

video

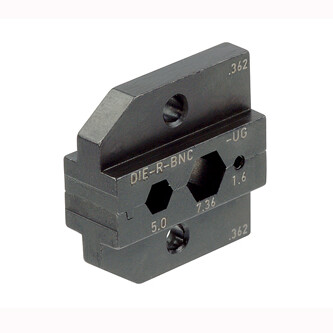

DIE-R-BNC-UG

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 7.36 mm (A), 5.0 mm (B)

video

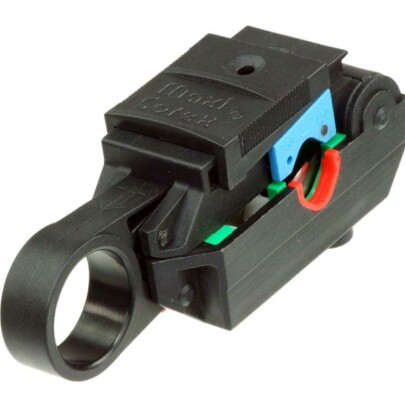

CS-BNC-LCV

Coax cable stripper for cable O.D. ≥8.0 mm

video
CS-BNC-LCS

Coax cable stripper for cable O.D. ≥8.0 mm

video

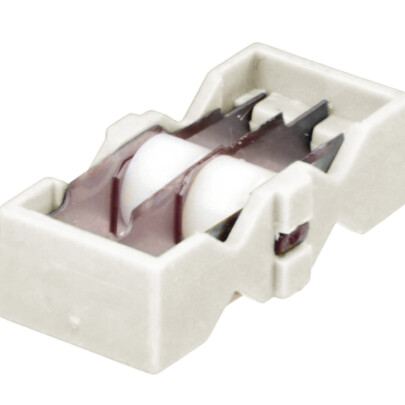

CS-BNC-TCI

Coax cable stripper insert for cable O.D. ≤ 4.0 mm
