DIE-R-BNC-PDC

Download Data Sheet

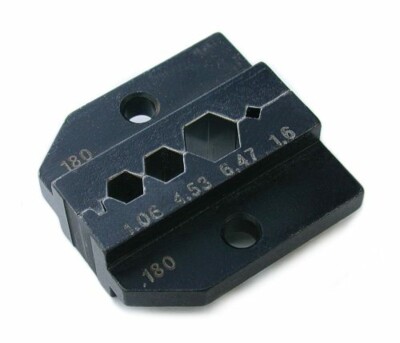

Crimp tool die for HX-R-BNC

Pin crimping: 1.60 mm
Shield and jacket: HEX crimp 6.47 mm (A), 4.53 mm (B), 4.06 mm (C)

Downloads
die-r-bnc-pdc-2
pdf - 31.84 KB
die-r-bnc-pdc-3
dxf - 12.46 KB

Technical Information

Product
Title DIE-R-BNC-PDC
Mechanical
Crimp size 4.06, 4.53, 6.47 Hex crimp (shield) acc. MIL22520/5-39(B), IEC 60803 (die designation C, E)
Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Wiresize
Accessories
HX-R-BNC

Crimp tool, frame ATTENTION: Suitable dies are DIE-R-* and DIE-R-BNC*
