neutrik-us > Products > NC3FBV2-SW
NC3FBV2-SW

NC3FBV2-SW

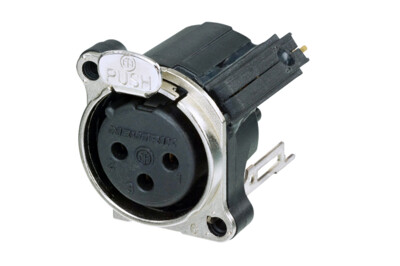

3 pole female XLR receptacle, switching contacts, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount

 The switching contacts are activated by the mating connector offering the possibility to indicate, monitor and control the mated connection. The switch provides a normal open and normal closed contact.

Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. UL recognized component.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Distributor Stock Search Technical Information Accessories
Download Data Sheet

Features & Benefits

  • Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
  • Fork type female contact
  • Fitted with changeover switch
  • Normally open, normally closed (NO - NC) contact
  • Switch activated by inserting the cable connector

Downloads

  • Drawing NC3FBV2-SW
  • Drawing NC3FBV2-SW
  • 3D File NC3FBV2-SW
  • Product Guide - Section XLR

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

Technical Information

Product
Title NC3FBV2-SW
Connection Type XLR
Gender female
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 6 mΩ
Dielectric strength 1.5 kVdc
Insulation resistance > 10 GΩ
Rated current per contact 6 A
Rated voltage < 50 V
Grounding Options Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize
Wiring vertical PCB mount
Locking device Latch lock
Mounting direction Rear mounting
Chassis shape B
Mounting B-Screw
Material
Contacts Bronze (CuSn6)
Insert Polyamide (PA 6.6 25 % GR)
Locking element Steel Ck67
Ring Zinc diecast (ZnAl4Cu1)
Flange Metal
Environmental
Approvals UL
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20

Accessories

A-SCREW
A-SCREW-1-8
ACRF
ACRF-*
dummyPLUG Case
CAS-DUMMY
NDF
NDF
SCF
SCF
SFAV
SFAV
