opticalCON MTP® 12 X-TREME Cable

Download Data Sheet

Assembled, 12-channel X-TREME cable offering a cut-proof and rodent resistant double jacket glass yarn armored cable construction. Excellent cable retention due to aramid yarn, black PUR outer jacket.

The opticalCON MTP® cable connector accommodates 12 optical fibers (multimode PC or single mode APC) based on conventional and proven MTP® connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.

The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.

Features & Benefits
  • opticalCON X-TREME cable for demanding applications like touring / rental or outdoor broadcast
  • opticalCON multimode fiber cables offer laser and bend optimized OM3 fibers
  • Offers a cut-proof and rodent-resistant double-jacket, glass-yarn armored cable construction
  • Rugged 12-channel fiber optic connection system
  • For Point-to-Point multichannel routing
  • Innovative spherical shutter guarantees low maintenance
  • Dust and water resistant according to IP65 in mated condition



Downloads
3D Ansicht NO12_X-A XTREME
stp - 3.21 MB
Strichzeichnung NO12_X-A
pdf - 231.03 KB
Strichzeichnung NO12_X-A
dxf - 6.08 MB
NDS11 - opticalCON MTP® X-TREME
pdf - 229.93 KB
BDA_649_ V1-opticalCON_MTP12_Verdrahtungsschema
pdf - 1.41 MB
NEUTRIK opticalCON Guide – NF05 V30 – 202410
pdf - 43.46 MB

Technical Information

Product
Title opticalCON MTP® X-TREME
Mechanical
Cable retention 500 N
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 2500 mating cycles
Wiresize
Locking device Push-Pull
Material
Boot Rubber (EPDM)
Bushing Zinc diecast (ZnAl4Cu1)
Insert Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief Brass (CuZn39Pb3) + PU, Ni (brass)
Environmental
Temperature range -40°C to +75 °C
Protection class in mated condition IP65
Optical
Insertion loss < 0.9 dB /connection
Optical connector MTP® ELITE female
Optical wiring Method A
Mobile cable
Colour black, matte
Core diameter Singlemode 9 µm, Multimode 50 µm OM3
Cladding diameter 125 µm
Comment PUR
minimal bending radius 10.8 cm
Number of fibers 12
Cable retention Aramid yarn
Weigth 111 kg/km
Overal diameter 10.8 mm
Accessories
CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

CAS-FOCD-ADV

Fiber optic cleaning kit

audio
CAS-FOMD

Fiber Optic Measurement Devices

NOR-*

Color coding ring for opticalCON cable and chassis connectors (SCNO-FDW-A)

audio
SCDR

Soft plastic cover for the rear ends of several D-size chassis connectors.

audio
SCDX

Hinged cover

SCNO*X-A

Rubber coated pollutant-protection cover for opticalCON cable connectors including front housing.

FOPS-SINGLE

The pulling sock simplifies the installation at a pulling force

FOCD-STM

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

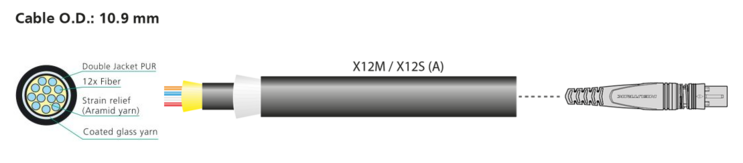

Cable cross section

opticalCON MTP X-TREME - cable cross section

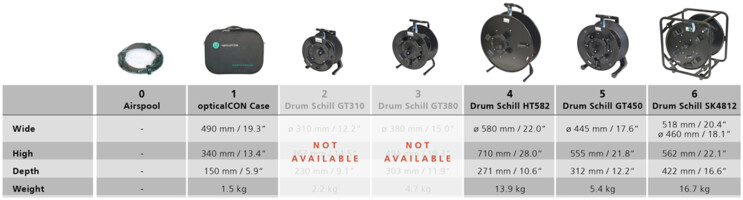

Packaging options and max. cable length

opticalCON-DRUM-Packagin---01456
opticalCON MTP logo

opticalCON Features

opticalCON Features
