neutrik-us > Products > NLT4MP

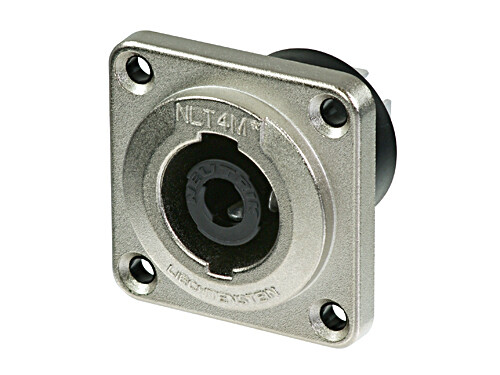

NLT4MP

NLT4MP

4 pole male chassis connector, metal housing, solder or ¼" flat tabs

The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Distributor Stock Search Technical Information Accessories
Download Data Sheet

Features & Benefits

  • Extremely robust metal housing designed for harsh and demanding environment
  • Ideal product for touring applications and harsh environments
  • Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
  • Uses precise “Quick Lock” system
  • Mates with all currently available speakON products
  • Weatherproof built-in gasket meets IP 54 protection class in mated condition
  • 4 pole version has UL Recognized components, CSA listed
  • 4 type range - also male cable connector and female receptacle on 4-pole version

Downloads

  • 3D File NLT4MP
  • Drawing NLT4MP
  • Drawing NLT4MP
  • Product Guide - Section Loudspeaker Connectors
  • Overview speakON Connectors
  • speakON Wiring Suggestion
  • speakON Flange and Fastening Layout

Links

  • UL Certificate (ECBT2.E135070)

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

Technical Information

Product
Title NLT4MP
Connection Type speakON
Gender male
Electrical
Contact resistance < 2 mΩ (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 10 GΩ
Rated current per contact 40 A rms continuous
Rated current per contact 50 A audiosignal, duty cycle 50 %
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime > 5000 mating cycles
Wiresize
Locking device Quick Lock
Chassis shape square G-size flange
Layout four thru holes
Material
Contact plating 4 µm Ag
Insert Polyamide (PA 6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1) Ni
Contacts Spring Copper (CuSn0.2)
Environmental
Flammability UL 94 HB
Protection class IP 54 (mated condition)
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C

Accessories

dummyPLUG Case
CAS-DUMMY
NDL
NDL
SCL
SCL
SCNLT
SCNLT
