NL4MPR

NL4MPR

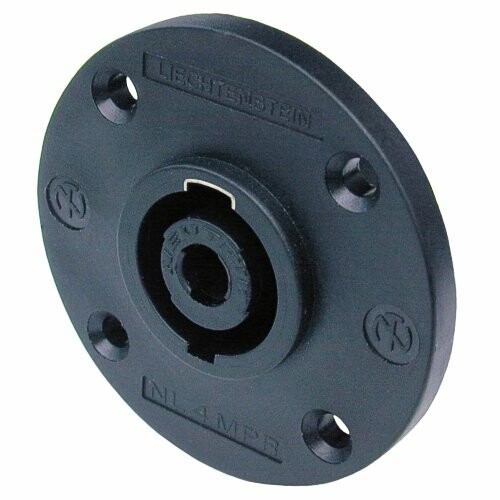

4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16" flat tabs

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Distributor Stock Search Technical Information Accessories
Download Data Sheet

Features & Benefits

  • Current rating 30 A rms
  • Glass reinforced materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications

Downloads

  • Drawing NL4MPR
  • Drawing NL4MPR
  • 3D File NL4MPR
  • Product Guide - Section Loudspeaker Connectors
  • Overview speakON Connectors
  • speakON Wiring Suggestion
  • speakON Flange and Fastening Layout

Links

  • UL Certificate (ECBT2.E135070)

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

Technical Information

Product
Title NL4MPR
Connection Type speakON
Gender male
Electrical
Contact resistance ≤ 3 mΩ (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 1 GΩ (after dampheat)
Rated current per contact 30 A rms continuous
Rated current per contact 40 A audiosignal, duty cycle 50 %
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime > 5000 mating cycles
Wiresize
Locking device Quick Lock
Chassis shape round G-size flange
Layout four thru holes
Material
Contact plating 4 µm Ag
Contacts Bronze (CuSn6)
Shell Polyamide (PA 6 30 % GR) black
Environmental
Flammability UL 94 HB
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C

Accessories

dummyPLUG Case
CAS-DUMMY
NDL
NDL
nlfaston
NLFASTON
SCL
SCL
