neutrik-us / Products / XLR Connectors / XLR Chassis Connectors / XLR ESD Series / NCJ6FA-V-AE

NCJ6FA-V-AE

Download Data Sheet

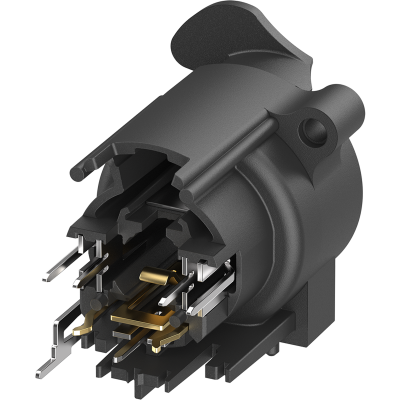

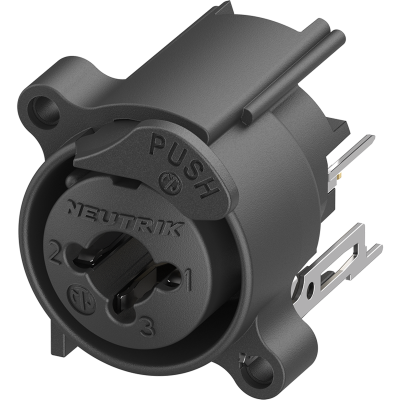

New: With ESD protective push tab improving electrostatic discharge and component protection.

XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack in the smallest available XLR housing. Improved ESD performance with asymmetric non-metallic push.

The all plastic A-Series offers the most space saving and cost effective design.

Features & Benefits
  • Protection against electrostatic discharge and components due to compound material of the push tab
  • Dramatic space saving - 15% over the predecessor Combo
  • Combined 3 pole XLR receptacle and 1/4" TRS phone jack for balanced mic and line or instrument inputs in one XLR housing
  • Very low conductor capacitance - ideal for digital audio
  • Two connectors in one housing - substantial cost, material and labour saving
  • Front panel cut-out compatible with Neutrik XLR A Series
Downloads
3D Model NCJ6FA-V-AE
stp - 3.65 MB
Drawing NCJ6FA-V-AE
pdf - 101.54 KB
Drawing NCJ6FA-V-AE
dxf - 2.09 MB
combo-circuits
pdf - 169.03 KB

Technical Information

Product
Title NCJ6FA-V-AE
Connection Type Combo
Gender female
Electrical
Contact resistance < 10 mΩ (XLR)
Contact resistance < 10 mΩ (jack)
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 3 A (XLR)
Rated current per contact 3 A (Jack)
Rated voltage < 50 V
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Panel thickness max. 3 mm (0.12'')
Wiring vertical PCB mount
Locking device Latch lock
Mounting direction Rear mounting
Mounting screw A-screw
Material
Contact plating gal 0.2 µm AuCo (XLR), gal 0.2 µm Ag (Jack RS), Palladium, 0.1 µm Pd over 3 µm NiP
Contacts Bronze (CuSn6)
Insert Polyamide (PA66)
Locking element Reinforced Polyamide
Environmental
Flammability UL 94 V-0
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Accessories
audio
A-SCREW-1-8

Black self tapping PLASTITE® screw 2.9 x 1.05 tri-rondular configuration, 8 mm long, panhead

audio
NDF

dummyPLUG for Neutrik female XLR receptacles

audio
SCF

Dust protection cover for female chassis connectors
