NCJ-FI
neutrik-us / Products / NCJ5FI-S

NCJ5FI-S

Download Data Sheet

3 pole XLR female receptacle with 1/4" mono jack without switching contact, solder cups for wire termination

XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack.

Downloads
ncj5fi-s-1
pdf - 71.28 KB
ncj5fi-s-2
dxf - 7.14 MB

Technical Information

Product
Title NCJ5FI-S
Connection Type Combo
Gender female
Electrical
Contact resistance < 10 mΩ (XLR)
Contact resistance < 20 mΩ (jack)
Dielectric strength 1,5 kVdc
Insulation resistance > 2 GΩ (initial)
Rated current per contact 7,5 A (XLR)
Rated current per contact 7,5 A (Jack)
Rated voltage < 50 V
Mechanical
Insertion force ≤ 25 N
Withdrawal force ≤ 25 N
Lifetime > 1000 mating cycles
Panel thickness max. 7 mm 0.27"
Wiresize
Mounting direction Rear mounting
Material
Contact plating 0.2 µm Au hard alloy over 2 µm Ni
Contacts Bronze (CuSn6)
Insert PA66
Locking element Steel Ck67
Locking element plating Nickel
Environmental
Flammability UL 94 V-0
Temperature range -30 °C to +80 °C
Accessories
audio
A-SCREW-1-8

Black self tapping PLASTITE® screw 2.9 x 1.05 tri-rondular configuration, 8 mm long, panhead

CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

audio
NDF

dummyPLUG for Neutrik female XLR receptacles

audio
SCF

Dust protection cover for female chassis connectors

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

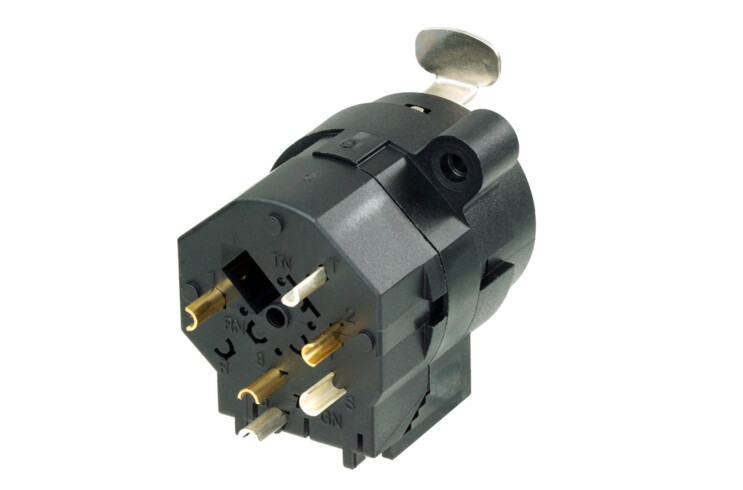

NCJ5FI-S rear
