NC5MDX-TOP
neutrik-us / Products / NC5MDX-TOP

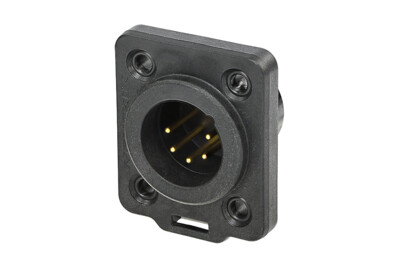

NC5MDX-TOP

Download Data Sheet

5 pole male chassis connector, TRUE OUTDOOR PROTECTED (TOP)

The X-TOP series is a "heavy-duty" XLR chassis connector for outdoor use. IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range

Features & Benefits
  • Heavy-duty sealed XLR connector range for harsh and demanding environment
  • IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
  • Uses high impact UV-resistant materials
  • Maintains sealing when in use and when disconnected
Downloads
Neutrik TOP Products - NF23 V07 202111
pdf - 5.03 MB
st-nc5mdx-top
pdf - 109.83 KB
st-nc5mdx-top
dxf - 960.08 KB
NC5MDX-TOP
stp - 1.95 MB
BDA 553 V4 - XLR Chassis TOP - NCxFDX-TOP NCxMDX-TOP SCxDX-TOP
pdf - 1.42 MB

Technical Information

Product
Title NC5MDX-TOP
Connection Type XLR
Gender male
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 7,5 A
Rated voltage < 50 V
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiring Solder contacts
Locking device Latch lock
Mounting direction Front mounting
Chassis shape D
Material
Contact plating 0.2 µm Au over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Steel Ck67
Gasket TPE
Shell Polyamide (PA 6.6 30 % GR)
Shell coating Black KTL
Environmental
Flammability UL94 V-0
Standard compliance IEC 61076-2-103
Protection class IP65
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Accessories
SCMDX-TOP

Sealing Cover for XLR TOP male Chassis NC3MDX-TOP and NC5MDX-TOP​.
