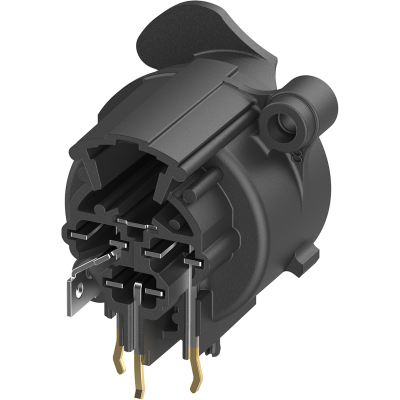

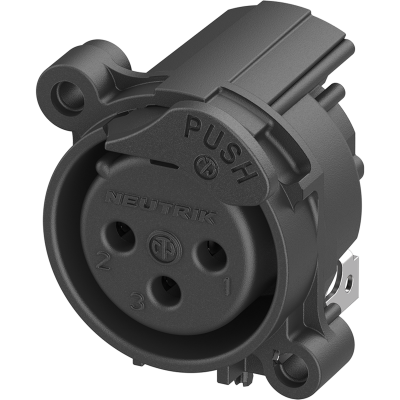

XLR-ESD-Push_NC3FAH1_DAE_persp front_RGB_WEB XLR-ESD-Push_NC3FAH1_DAE_persp back_RGB_WEB
XLR-ESD-Push_NC3FAH1_DAE_persp front_RGB_WEB
XLR-ESD-Push_NC3FAH1_DAE_persp back_RGB_WEB
1/2
neutrik-us / Products / XLR Connectors / XLR Chassis Connectors / XLR ESD Series / NC3FAH1-DAE

NC3FAH1-DAE

Download Data Sheet

New: With ESD protective push tab improving electrostatic discharge and component protection.

The `State of the Art` receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23mm between centres). New designed tulip type contacts with hard gold plating and polished contact areas. Improved ESD performance with asymmetric non-metallic push.

The all plastic A-Series offers the most space saving and cost effective design.

Features & Benefits
  • Protection against electrostatic discharge and components due to compound material of the push tab
  • Plastic housing
  • Smallest XLR receptacles, highest packing density
  • Polished contact areas and hard gold plating
  • Tulip type female contact
  • Housing flammability UL94 V-0
Downloads
3D Model NC3FAH1-DAE
stp - 2.98 MB
Drawing NC3FAH1-DAE
pdf - 239.33 KB
Drawing NC3FAH1-DAE
dxf - 1.41 MB

Technical Information

Product
Title NC3FAH1-DAE
Connection Type XLR
Gender female
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 6 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 6 A
Rated voltage < 50 V
Grounding Options Pin 1 connected direct to front panel and connector shell, no separate ground contact
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiring Horizontal PCB mount
Locking device Latch lock
Mounting direction Rear mounting
Chassis shape A
Mounting A-Screw
Material
Contacts Bronze (CuSn6)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Reinforced Polyamide
Environmental
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Accessories
audio
A-SCREW-1-8

Black self tapping PLASTITE® screw 2.9 x 1.05 tri-rondular configuration, 8 mm long, panhead

audio
NDF

dummyPLUG for Neutrik female XLR receptacles

audio
SCF

Dust protection cover for female chassis connectors
