*Discontinued* Successor product: NAC3MPXXB-WOT

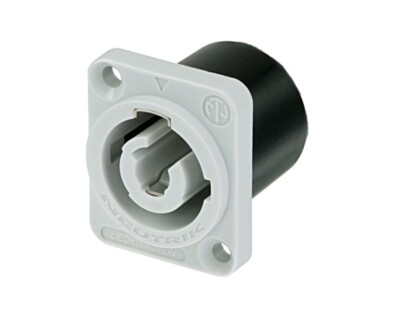

Chassis connector, power-out, 3/16'' flat tab terminals, grey, without insulation divider
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
NAC3MPA-1 NAC3MPA-1-WOT
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Enter part number and search Neutrik USA distributor's stock.
Product | |
Title | NAC3MPB-1-WOT |
Type | Chassis |
Gender | male |
Electrical | |
Contact resistance | ≤ 3 mΩ |
Dielectric strength | 4 kVdc / 2.8 kVac |
Insulation resistance | > 0.1 GΩ (after damp heat test IEC 68-2-30) |
Number of electirical contacts | 2 + PE |
Rating Europe | EN 61984:20 A 250 V AC |
Rating USA | UL 1977:20 A 250 V AC |
Mechanical | |
Lifetime | > 1000 mating cycles |
Wiresize | 2.5mm² |
12 AWG | |
Locking device | Quick Lock |
Mounting direction | Front mounting |
Chassis shape | D |
Material | |
Contact plating | 2 µm Ag |
Locking element | Steel Ck67 |
Shell | Polyamide (PA 6 30 % GR) |
Contacts | Bronze (CuNi1Si0.2) |
Environmental | |
Flammability | UL 94 V-0 |
Protection class | IP 20 |
Temperature range | -30 °C to +80 °C |
