NAC3MPB-1

*Discontinued*
Successor product: NAC3MPXXB

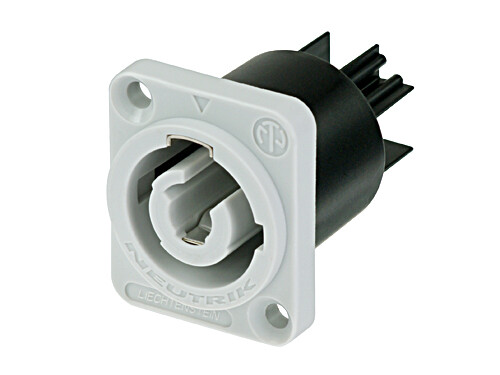

Chassis connector, power-out, 3/16'' flat tab terminals, grey

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

Features & Benefits

Locking 20 A / 250 V ac appliance coupler
3 contacts for line, neutral and premating safety ground
Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
Fast and easy twist lock latching system
Extremely robust and reliable
Ergonomic design
User friendly latch design for easy handling
UL, cUL recognized components
VDE certified
Branded with unique hologram - guarantees genuine and authentic Neutrik product

Downloads

Certificate_VDE_40014741 (2022-02-25)

pdf - 324.23 KB

Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25

pdf - 7 MB

BDA 454 V3 - powerCON - NAC3MPA-1 + NAC3MPB-1

Links

UL Certificate (ECBT2.E135070) cUL Certificate (ECBT8.E135070)

Technical Information

Product
Title	NAC3MPB-1
Gender	male

Electrical
Contact resistance	≤ 3 mΩ
Dielectric strength	4 kVdc / 2.8 kVac
Insulation resistance	> 0.1 GΩ (after damp heat test IEC 68-2-30)
Number of electrical contacts	2 + PE
Rating Europe	EN 61984:20 A 250 V AC
Rating USA	UL 1977:20 A 250 V AC
