Combo I Series

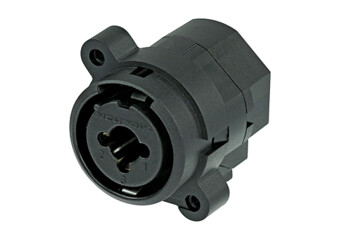

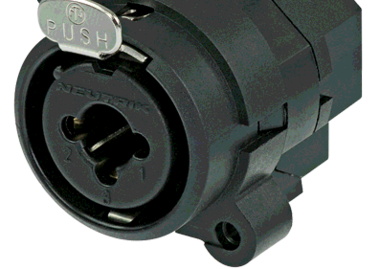

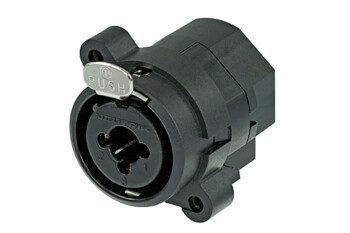

First XLR / jack hybrid panel mount connector combining a 3 pole XLR receptacle and mono or stereo ¼" phone jack in one XLR housing. Space saving combination of 2 connectors in one plastic housing. Available in nonswitching and normalling versions with horizontal or vertical pcb mount or soldering termination.
Many equipments have two input connectors (balanced XLR and unbalanced jack). But in almost all cases only one input is used at a time, so the Combo reduces panel space, costs and simplifies pcb design.
V = vertical pcb mount, straight pins
H = horizontal pcb mount, angled pins
S = Solder contacts
-0 = no latch, retention spring
no suffix = Latch lock
Separate ground contact to mating connector shell and front panel, including switching ground version
Rear panel mount
Self-tapping PLASTITE screw with thread 2.9x1.06 and of tri-rondular configuration (A-screw)
(PLASTITE® is a registered trademark of SFS Unimarket)
1 - 3 mm
