SE8FD-TOP

Download Data Sheet

Assembly kit to convert D-series etherCON connectors into TOP versions.

Features & Benefits
  • D-sized receptacle flange for PCB mount and IDC termination

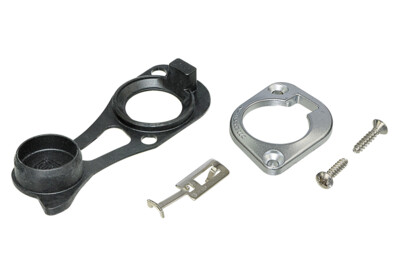

  • Consisting of Chromium plated flange incl. cover, sealing gasket, push lever and mounting screws
  • IP65 rating and certified outdoor protection to UL 50E (in combination with NE8MX-TOP or sealing cap closed)
  • Uses high impact UV-resistant and gasket materials
  • Class D or CAT5e according to ISO/IEC 11801 and TIA/EIA
Downloads
st-se8fd-top
pdf - 227.93 KB
st-se8fd-top
dxf - 1.88 MB
d-3-d-se8fd_top_flange
stp - 115.01 KB
BDA 552 - etherCON TOP - SE8FD-TOP Outdoor kit
pdf - 1.04 MB
Neutrik TOP Products - NF23 V07 202111
pdf - 5.03 MB

Technical Information

Product
Title SE8FD-TOP
Material
Shell Zinc diecast (ZnAl4Cu1)
Sealing gasket and locking element EPDM
Shell plating Chromium
