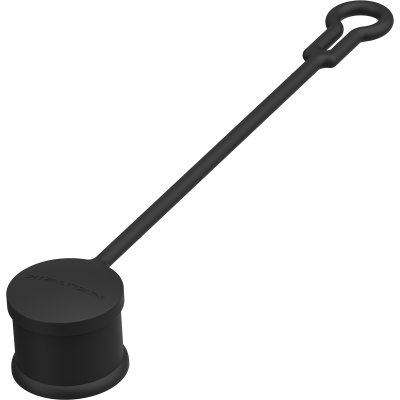

Dichtkappe_SCFX-TOP_persp front liegend_RGB_WEB

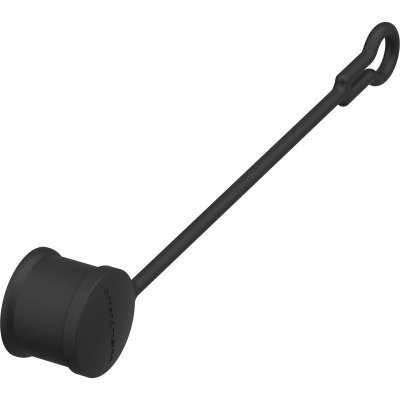

Dichtkappe_SCFX-TOP_persp front liegend seitlich_RGB_WEB

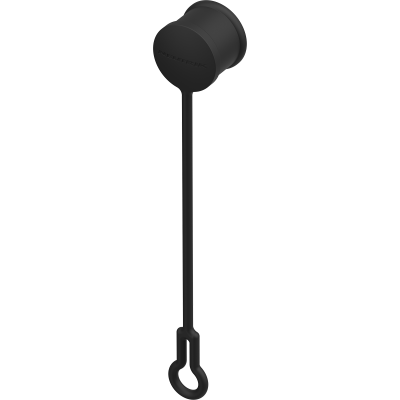

Dichtkappe_SCFX-TOP_persp front stehend_RGB_WEB
1/3
neutrik-us / Products / Accessories / Sealing Accessories / SCFX-TOP

SCFX-TOP

Download Data Sheet

The rubber sealing cover protects XLR TOP cable connectors NC*FX-TOP from dust and water according to protection class IP65.

Features & Benefits
  • User friendly
  • Mountable on assembled Cable
  • Protection class: IP 65
  • UV-resistant material for use in harsh outdoor environments
Downloads
SCFX-TOP
dxf - 2.26 MB
SCFX-TOP
pdf - 56.77 KB
scfx-top
stp - 475.31 KB
BDA_657_V1-Sealing_Caps_for_Cable_Connectors_SCNAC-FX-MX-TOP
pdf - 964.87 KB

Technical Information

Product
Title SCFX-TOP
Material
Material EPDM
Color Black
Environmental
Flammability acc. to UL94 HB
Protection class acc.to IEC 60529 IP 65
