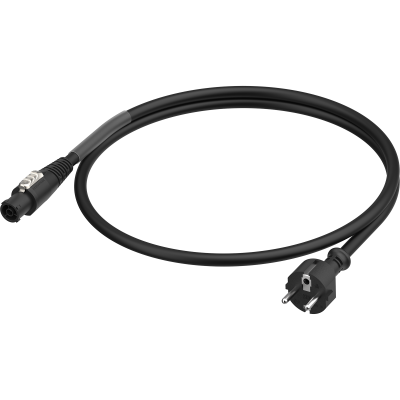

powerCON_cable-NAC3FXW-Schuko1_persp front_RGB_WEB

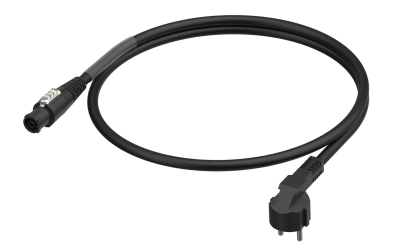

23-135_NEUTRIK_powerCON kabelkombis auf rolle fuer Broschuere.120
1/2
neutrik-us / Products / powerCORDS / essential POWER CORDS / powerCON TRUE1 - Schuko cordset (NKPF-S*)

powerCON TRUE1 - Schuko cordset (NKPF-S*)

Download Data Sheet

Ready-made power cord equipped with an overmolded Neutrik powerCON TRUE1 NAC3FX-W and a straight or right angled Schuko connector. The cables are available in different lengths.

Downloads
nkpf-sr
dxf - 1.18 MB
Drawing NKPF-S
pdf - 510.82 KB
Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25
pdf - 7 MB
Links
UL Certificate (ELBZ2.E343814) cUL Certificate (ELBZ8.E343814)

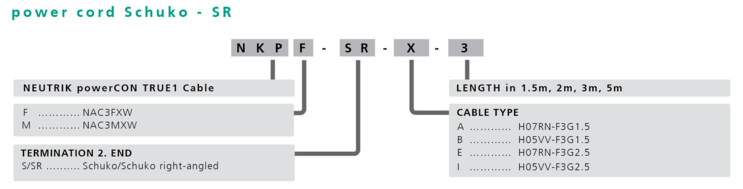

Cable Part Number Breakdown

powerCON TRUE1 Part Number Breakdown Schuko Power Cord
powerCON TRUE1

The powerCON TRUE1 is a locking waterproof 16 A (USA: 20 A) true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

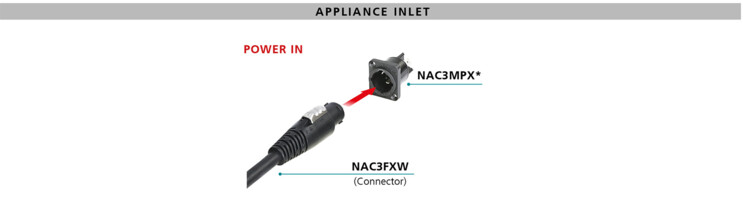

Mating scenario powerCON TRUE 1 chassis connector NAC3MPX-W

Mating scenario powerCON TRUE 1 chassis connector NAC3MPX-W

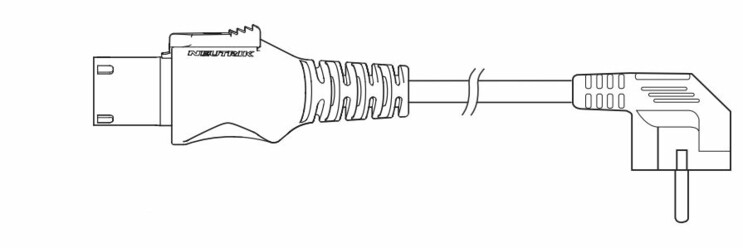

powerCON TRUE1 Schuko Power Cord

powerCON TRUE1 Schuko Power Cord
