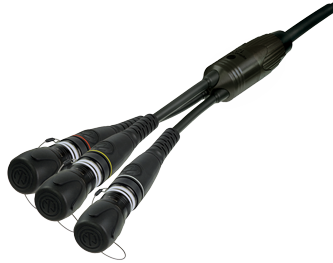

NKO12S-opticalCON Split
neutrik-us / Products / opticalCON SPLIT

opticalCON SPLIT

Download Data Sheet

Multichannel (up to 12 channel) cable solution based on opticalCON DUO, QUAD or MTP®. Excellent cable retention due to aramid yarn, black PUR outer jacket.

The opticalCON cable connector accommodates PC optical channels based on conventional and proven LC or MTP® connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.

The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.

Features & Benefits
  • opticalCON multichannel solution based on the opticalCON DUO, QUAD or MTP®
  • maximum flexibility combining 2-, 4- and 12-channel cables
  • opticalCON multi mode fiber cables offer laser and bend optimized OM3 fibers
  • 1 m SPLIT: mechanically damaged connectors can be reassembled with a slightly shortened cable split
  • Color coding for channel identification
  • Rugged fiber optic connection system
  • For Point-to-Point multichannel routing
  • Innovative spherical shutter guarantees low maintenance
  • Dust and water resistant according to IP65 in mated condition

Downloads
nko12
dxf - 2.31 MB
nko12-1
pdf - 254.79 KB
produkt-katalog---kapitel-datenstecker
pdf - 7.81 MB
BDA 522 V2 - opticalCON QUAD Handling Instruction
pdf - 3.55 MB
opticalcon-quad-technical-paper-v1
pdf - 1.52 MB
NDS11 - opticalCON MTP 12® X-TREME
pdf - 229.93 KB
opticalcon-broadcast-application-ob-truck
pdf - 422.34 KB
NDS10 - opticalCON MTP 12® & SPLIT ADVANCED
pdf - 230.55 KB
opticalcon-availability
pdf - 586.23 KB
reference-projects---opticalcon
pdf - 4.96 MB
NEUTRIK opticalCON Guide – NF05 V30 – 202410
pdf - 43.46 MB

Technical Information

Product
Title opticalCON SPLIT
Mechanical
Cable retention 500 N
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 2500 mating cycles
Wiresize
Locking device Push-Pull
Material
Boot Rubber (EPDM)
Bushing Zinc diecast (ZnAl4Cu1)
Insert Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief Brass (CuZn39Pb3) + PU, Ni
Environmental
Temperature range -40 °C to +70 °C
Protection class in mated condition IP65
Optical
Insertion loss < 0.9 dB
Mobile cable
Colour black, matte
Core diameter Singlemode 9 µm, Multimode 50 µm OM3 µm
Cladding diameter 125 µm
minimal bending radius 10.9 cm
Number of fibers 12
Cable retention Aramid yarn
Weigth 103 kg/km
Cable diameter 10.9 mm
Accessories
CAS-FOCD-ADV

Fiber optic cleaning kit

audio
CAS-FOMD

Fiber Optic Measurement Devices

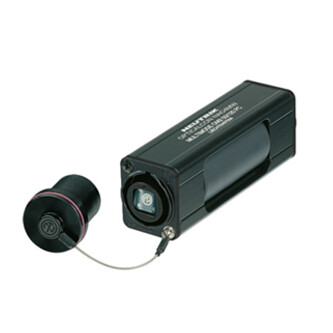

NAO4*W-A

Weatherproof opticalCON QUAD coupler (adapter) for cable extensions

NOR-*

Color coding ring for opticalCON cable and chassis connectors (SCNO-FDW-A)

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

Cable cross section

Packaging options and max. cable length
