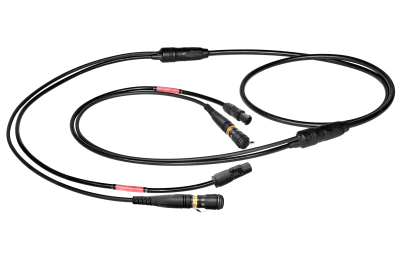

opticalCON POWERSPLIT 202502
neutrik-us / Products / opticalCON POWERSPLIT

opticalCON POWERSPLIT

Download Data Sheet

Rugged hybrid multi-channel cable assembly consisting of power wires (240V AC / 16A / 2.5mm2) and fiber lines (up to 12 channels). Perfect solution for harsh environments and mobile applications requiring both AC power and multiple fiber strands. Optimized for ENG/SNG.

Features & Benefits
  • Multi-channel solution based on the opticalCON and powerCON TRUE1 connectors
  • Perfect solution for applications where high volume of cabling is required. Optimized for point-to-point multi-channel routing and ENG/SNG applications
  • One hybrid cable can replace up to 7 standard cables, reducing spooling efforts, weight and space requirements
  • POWERSPLIT hybrid multi-channel cable consists of power wires (240V AC / 16A / 2.5mm2) and multi-channel fiber lines (up to 12 channels)
  • Ideal for harsh outdoor environments and mobile applications due to innovative rugged design of powerCON TRUE1 and opticalCON ADVANCED DUO/QUAD/MTP connectors
  • Extremely long lifetime (up to 5000 mating cycles)
  • Lockable powerCON / opticalCON connectors ensure safe and uninterrupted power and data transmission
  • Complete solution is IP65 protected in mated condition
  • Innovative opticalCON spherical shutter protects fiber connection from dust even in unmated conditions and reduces required maintenance
Downloads
opticalCON_POWERSPLIT_2
pdf - 858.24 KB
NDS18 V2 - opticalCON POWER SPLIT 2
pdf - 393.17 KB
opticalcon-availability
pdf - 586.23 KB
reference-projects---opticalcon
pdf - 4.96 MB
NEUTRIK opticalCON Guide – NF05 V30 – 202410
pdf - 43.46 MB
Certificate_VDE-REG_40052691 (2023-12-22)
pdf - 328.01 KB

Technical Information

Product
Title POWERSPLIT 2.5mm²
Mechanical
Cable retention 400 N
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) opticalCON DUO/ QUAD >5000, МТР >2500
Locking device Push-Pull
Material
Boot Rubber (EPDM)
Bushing Zinc diecast (ZnA|4Cu1)
Insert Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell Zinc diecast (ZnA|4Cu1)
Shell plating Black chromium
Strain relief Brass (CuZn39Pb3) + PU, Ni
Environmental
Temperature range -30 °C to + 75°C
Optical
Insertion loss opticalCON DUO / QUAD <0.45 dB
MTP < 0.9 dB
Mobile cable
Colour black, matte
Core diameter Singlemode 9 µm (G.657A)
Multimode 50 µm (OM3)
Cladding diameter 125 µm
minimal bending radius 26.4 cm
Number of fibers 12
Weigth 220 kg/km
Cable diameter 13.2 mm
Accessories
CAS-FOCD-ADV

Fiber optic cleaning kit

audio
CAS-FOMD

Fiber Optic Measurement Devices

NAO4*W-A

Weatherproof opticalCON QUAD coupler (adapter) for cable extensions

NOR-*

Color coding ring for opticalCON cable and chassis connectors (SCNO-FDW-A)

The opticalCON DUO/QUAD/MTP cable connector accommodates up to 12 PC/APC optical channels based on conventional and proven LC/MTP connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptionally well protected against dirt and dust by an automatically operated sealing cover. The cable is available in different lengths and is packed either on a drum or air spooled.

The powerCON TRUE1 is a locking 16A rms (USA: 20A) true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

ATTENTION: The powerCON TRUE1 is a connector with IP65 rating and breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Logo equipment duo quad mtp

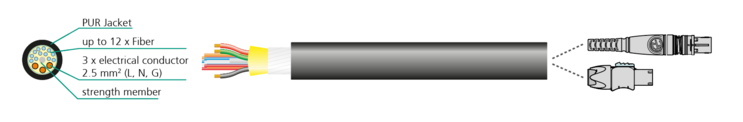

Cable cross section 2.5mm2

opticalCON POWER-SPLIT - cable cross section

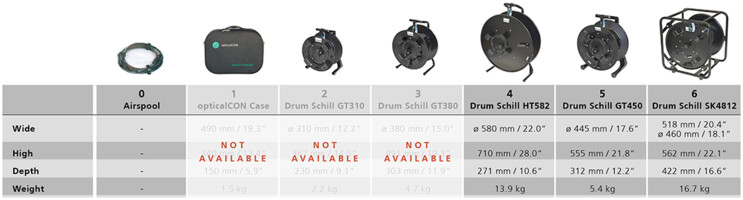

Packaging options and max. cable length

opticalCON-DRUM-Packagin---0456

opticalCON Features

opticalCON Features
