neutrik-us / Products / opticalCON MTP® 24 LITE

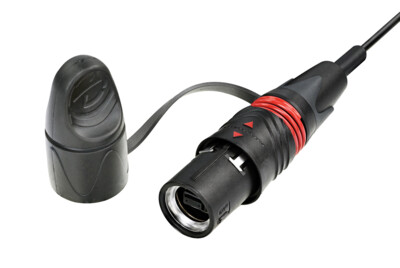

opticalCON MTP® 24 LITE

Download Data Sheet

24 channel MTP® based fiber system, improved bending performance due to new tactical fiber design, black matt outer jacket, available in multi- and single-mode (PC or APC).

Besides extreme applications there is also a demand for quality fiber connections for semi-rugged applications as e.g. patching or permanent installations. Such applications require a focus on costs and a sealing shutter is not required. The opticalCON MTP® LITE offers high performance and a cost effective, compact, and light weight design. It is fully compatible with the standard opticalCON MTP® chassis connector.

Features & Benefits
  • 24-channel MTP® based fiber optic connection system
  • Waterproof acc. to IP65 safety standard in mated condition
  • Recommended for multi-signal transmission
  • Push-pull locking mechanism
  • Custom color coding
  • Rugged housing
  • Rubber protected cap
  • Compatible with standard opticalCON ADVANCED NO24FDW-A chassis

The opticalCON MTP® LITE cable connector accommodates USCONEC Elite female ferrules in a durable plastic housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and comes with an airspool packaging.

Downloads
NDS17 - opticalCON MTP® 24 LITE
pdf - 230.19 KB
BDA 440 V2 - opticalCON LITE MTP Handling Instruction
pdf - 4.85 MB
NEUTRIK opticalCON Guide – NF05 V30 – 202410
pdf - 43.46 MB
reference-projects---opticalcon
pdf - 4.96 MB
opticalcon_mtp_lite_technical_paper
pdf - 6.15 MB
st-no24_x-l
pdf - 138.36 KB
st-no24_x-l-1
dxf - 1.25 MB
ntp09---opticalcon-mtp-24-lite
pdf - 2.37 MB

Technical Information

Product
Title opticalCON MTP® 24 LITE
Connection Type opticalCON
Gender male
Mechanical
Cable retention > 250 N
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 1'500 mating cycles
Wiresize
Locking device Push-Pull
Material
Boot Rubber (EPDM)
Insert PBT
Shell PBT
Environmental
Temperature range -40 °C to +70 °C
Optical wiring ISO / IEC 11801
Protection class in mated condition IP65
Optical
Insertion loss < 0.45 dB
Optical return loss
> 50 dB (PC)
> 60 dB (APC)
Mobile cable
Colour black, matte
Core diameter Single Mode 9 µm, Multimode 50 µm
Cladding diameter 125 µm PVC
minimal bending radius 3.5 cm
Cable retention Aramid yarn
Weigth 12.6 kg/km
Overall diameter 3.5 mm
Accessories
audio

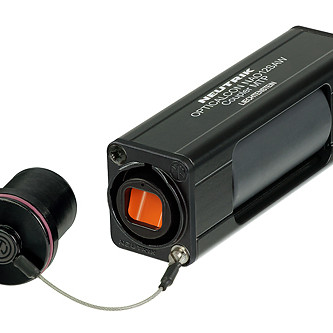

opticalCON® Coupler

audio
CAS-FOMD

Fiber Optic Measurement Devices

CAS-FOCD-ADV

Fiber optic cleaning kit

NOR-*

Color coding ring for opticalCON cable and chassis connectors (SCNO-FDW-A)

SCNKO-L

Rubber dirt protection for opticalCON LITE cable connector (spare part)

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

Tactical Patch Cable

Conventional patch cables are sensitive in terms of undercutting the minimum bending radius and lateral pressure. Neutrik’s tactical patch cables contain a unique fiber design including a protection layer which allows bending with minimal radius and increased lateral pressure. Therefore the tactical patch cables are the right choice for permanent or semi-permanent applications.
