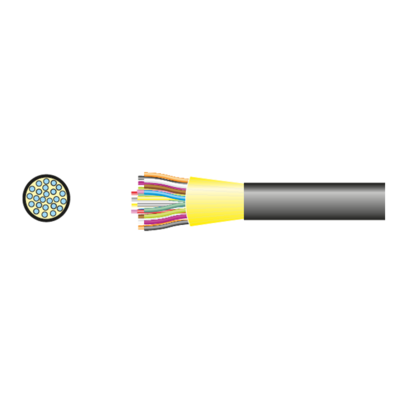

opticalCON-MTP24-LITE-cable-profile
opticalCON MTP logo
1/3
neutrik-us / Products / opticalCON MTP® 24 Cable

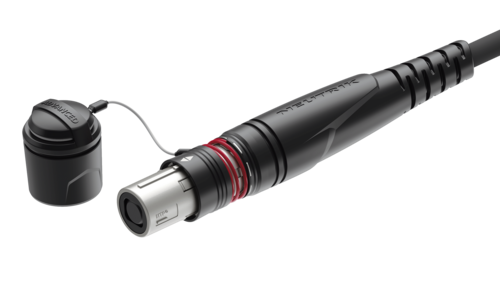

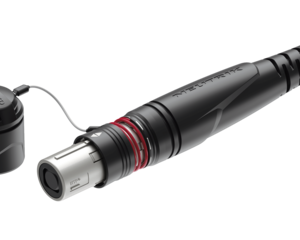

opticalCON MTP® 24 Cable

Download Data Sheet

Assembled, rugged and lightweight 24-channel mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in single (APC) and multi mode (PC).

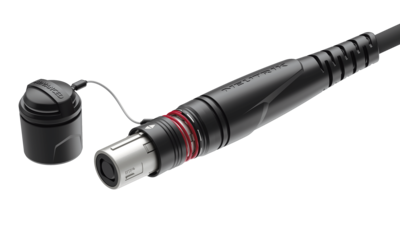

The opticalCON MTP® cable connector accommodates 24 optical fibers (multimode PC or single mode APC) based on conventional and proven MTP® connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.

The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.



Features & Benefits
  • Ruggedized and dirt-protected 24-channel fiber optic connection system
  • For point-to-point multichannel routing based on MTP® technology
  • Cable connector features rugged metal housing and heavy-duty cable retention
  • Spherical shutter guarantees low maintenance
  • Dust and water resistant according to IP65 in mated condition
  • Easy to clean, no special tools required
  • Reliable Push-Pull locking mechanism
  • Cable connector comes pre-assembled with a choice of mobile field cables
  • Type-A:2-2 according to TIA 568.3-D definition
Downloads
3D Ansicht NO24_X-A
stp - 3.9 MB
Strichzeichnung NO24_X-A
pdf - 186.97 KB
Strichzeichnung NO24_X-A
dxf - 4.76 MB
NDS16 - opticalCON MTP® 24 ADVANCED
pdf - 238.33 KB
ntp08---opticalcon-mtp24
pdf - 2.42 MB
opticalcon-mtp-24-tour-de-suisse-1
pdf - 287.31 KB
BDA 524 V2 - opticalCON MTP24 Verdrahtungsschema
pdf - 1.67 MB
NEUTRIK opticalCON Guide – NF05 V30 – 202410
pdf - 43.46 MB

Technical Information

Product
Title opticalCON MTP® 24 Cable
Mechanical
Cable retention > 500 N
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 2'500 mating cycles
Wiresize
Locking device Push-Pull
Material
Boot Rubber (EPDM)
Bushing ZnAl4Cu1
Insert Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief Brass (CuZn39Pb3) + PU, Ni
Environmental
Temperature range -40 °C to +75 °C
Protection class in mated condition IP65
Optical
Insertion loss < 0.9 dB
Optical connector MTP® ELITE female
Optical wiring Method A
Mobile cable
Colour black, matte
Core diameter Singlemode 9 µm, Multimode 50 µm OM3
Cladding diameter 125 µm
Comment PUR
minimal bending radius 8.2 cm
Number of fibers 24
Cable retention Aramid yarn
Weigth 43 kg/km
Overall diameter 7 mm
Accessories
CAS-FOCD-ADV

Fiber optic cleaning kit

audio
CAS-FOMD

Fiber Optic Measurement Devices

audio

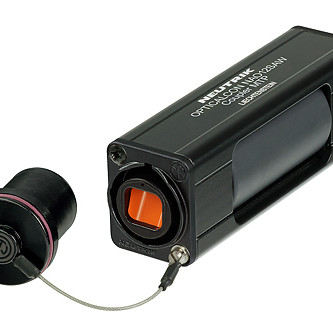

opticalCON® Coupler

NOR-*

Color coding ring for opticalCON cable and chassis connectors (SCNO-FDW-A)

SCNO*X-A

Rubber coated pollutant-protection cover for opticalCON cable connectors including front housing.

FOPS-SINGLE

The pulling sock simplifies the installation at a pulling force

FOCD-STM

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

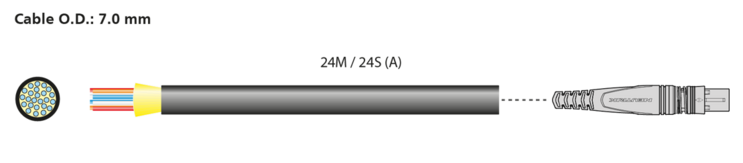

Cable cross section

cable cross opticalCON MTP 24

Packaging options and max. cable length

opticalCON-DRUM-Packagin---013456
