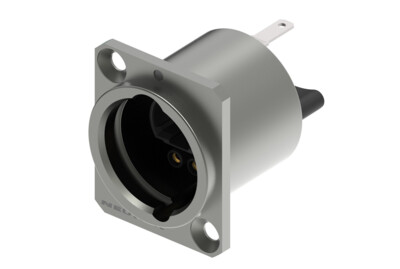

opticalCON HYBRID MED Chassis
Female chassis connector with ruggedized anticorrosive plating, 2 crimp contacts, 1 MPO feedthrough socket and 1 shell ground contact for cable shield.

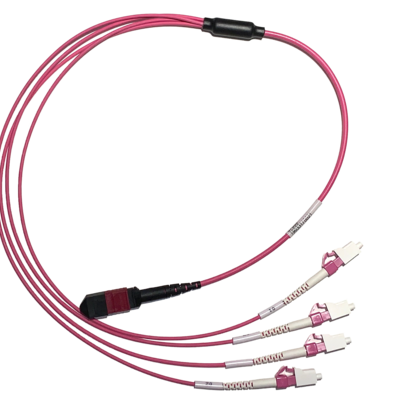

The chassis connector acts as a feedthrough allowing simplified installations by connecting a MPO patch cable on the rear. The chassis cut-out has the same size like Neutrik’s approved D-Shape design and is therefore simple to integrate into existing systems.
Features & Benefits
- Suggested OEM equipment chassis connector with common D-shape design
- Improved guiding nose for safe and correct connection
- Ruggedized hybrid feedthrough connection system
- MPO cut-out for patch cables
- 2 power contacts
- 1 ground contact - Designed as feedthrough for easy repair and replacement
- Shielded system with EMI protection design
- Suitable for indoor healthcare applications
Downloads
no16fd-xp
stp - 2.31 MB
20000982_-_NO16FD-XP
pdf - 203.69 KB
st-no16fd-xp
dxf - 1.09 MB
BDA 598 V2 - opticalCON HYBRID MED Cleaning Instruction
pdf - 832.63 KB
BDA 612 V1 - opticalCON HYBRID MED Contact Crimping
pdf - 1.63 MB
NEUTRIK opticalCON HYBRID MED NF27 V4 202010
pdf - 6.38 MB
opticalCON HYBRID MED Application
pdf - 981.48 KB
NTP14 - opticalCON HybridMED
pdf - 5.1 MB
Technical Information
| Product | |
|---|---|
| Title | NO16FD-XP |
| Gender | Female |
| Electrical | |
|---|---|
| Contact resistance | < 7 mΩ |
| Insulation resistance | > 10 GΩ (initial) |
| Mains | 12V AC / 10A / @50 Hz |
| Mechanical | |
|---|---|
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 10'000 mating cycles |
| Locking force | 900 N |
| Locking device | Push/Pull |
| Mounting direction | Front mounting |
| Wiresize (power) | Max. 16 AWG |
| Material | |
|---|---|
| Contacts | Brass |
| Insert | Polyetherimide and Polycarbonate (PEI+PC) |
| Shell | Zinc diecast and Polyoxmethylen |
| Shell plating | Nickel |
| Environmental | |
|---|---|
| Flammability | UL94 V-0 |
| Temperature range | -40°C to +75°C |
