opticalCON DUO X-TREME
Assembled, 2 channel X-TREME cable offering a cut-proof and rodent resistant double jacket glass yarn armored cable construction. Excellent cable retention due to aramid yarn, black PUR outer jacket.
The opticalCON DUO cable connector accommodates a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.
The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.
- opticalCON X-TREME cable for demanding applications like touring / rental or outdoor broadcast
- opticalCON multimode fiber cables offer laser and bend optimized OM3 fibers
- Offering a cut-proof and rodent resistant double jacket glass yarn armored cable construction
- Rugged and dirt protected 2 channel fiber optic connection system
- Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket
- Accommodates standard optical LC-Duplex connectors
- Reliable Push-Pull locking mechanism
- Dust and water resistant according to IP65 in mated condition
- Easy to clean, no special tools required
- Available in different packaging versions
Technical Information
| Product | |
|---|---|
| Title | opticalCON DUO X-TREME |
| Connection Type | opticalCON |
| Gender | male |
| Mechanical | |
|---|---|
| Cable retention | 500 N |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 5000 mating cycles |
| Wiresize | |
| Locking device | Push-Pull |
| Material | |
|---|---|
| Boot | Rubber (EPDM) |
| Bushing | Zinc diecast (ZnAl4Cu1) |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | POM (brass) |
| Environmental | |
|---|---|
| Temperature range | -40°C to +75 °C |
| Protection class | in mated condition IP65 |
| Optical | |
|---|---|
| Insertion loss | < 0.5 dB / connection |
| Optical wiring | ISO / IEC 11801 |
| Mobile cable | |
|---|---|
| Colour | black, matte |
| Core diameter | Single mode 9 µm, Multimode 50 µm |
| Cladding diameter | 125 µm |
| Comment | PUR |
| minimal bending radius | 10 cm |
| Number of fibers | 2 |
| Cable retention | Aramid Yarn |
| Weigth | 82 kg/km |
| Overal diameter | 9.2 mm |
| Outer shield | Coated glass yarn |
Fiber optic cleaning kit
Fiber Optic Measurement Devices
Weatherproof opticalCON DUO coupler (adapter), LC-Duplex, 4 copper wires (0.75 mm²).
Color coding ring for opticalCON cable and chassis connectors (SCNO-FDW-A)
Rubber coated pollutant-protection cover for opticalCON cable connectors including front housing.
The opticalCON Transceiver Adapter connects an opticalCON chassis (NO2-4FDW*) and a LC SFP transceiver
The pulling sock simplifies the installation at a pulling force
The pulling sock simplifies the installation at a pulling force.
Noise cancelling rubber protection cover for opticalCON cable connectors, including front housing.

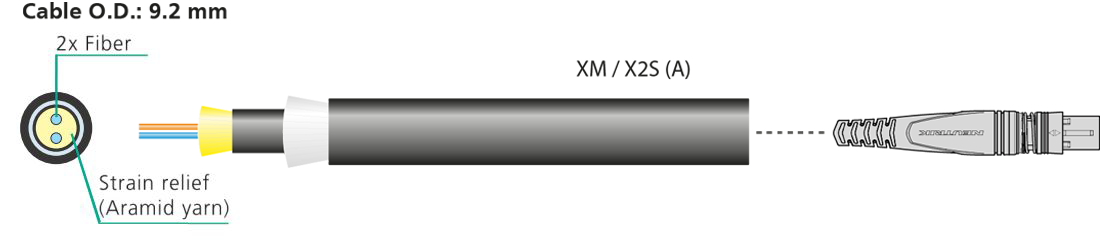

Cable cross section
