opticalCON DUO LITE
neutrik-us / Products / opticalCON DUO LITE

opticalCON DUO LITE

Download Data Sheet

2 channel fiber system, improved bending performance due to new fiber design, black matt outer jacket, available in multi- and single-mode (PC or APC). Designed for temporary and permanent installations.

Besides extreme applications there is also a demand for quality fiber connections for applications as e.g. patching, the interconnection of devices, or permanent installations. Such applications require a focus on costs and a sealing shutter is not required. The opticalCON DUO LITE offers high performance and a cost effective, compact, and light weight design. It is fully compatible with the standard opticalCON DUO chassis connector.

Features & Benefits
  • Ruggedized 2 channel fiber optic connection system
  • Cost optimized fiber connection for semi and permanent installation
  • Waterproof acc. to IP65 safety standard in mated condition
  • Lightweight plastic housing
  • Reliable Push-Pull locking mechanism
  • Easy to clean, no special tools required
  • Compatible with standard opticalCON DUO chassis NO2-4FDW-A*
  • Tactical patch cable

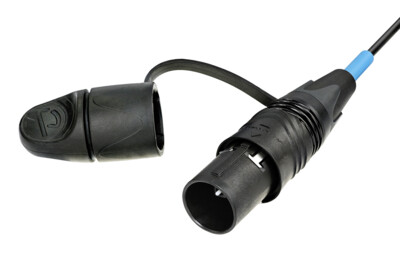

The opticalCON DUO LITE cable connector accommodates a standard optical 1.25mm ferrule in a durable plastic housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The connector comes pre-assembled and is not available as a single component. The cable is available in different lengths.

Downloads
no2_x-l-1
pdf - 138.88 KB
no2_x-l
dxf - 1.14 MB
reference-projects---opticalcon
pdf - 4.96 MB
NEUTRIK opticalCON Guide – NF05 V30 – 202410
pdf - 43.46 MB
cable-datasheet---opticalcon-duo-lite
pdf - 228.95 KB
opticalcon_duo_lite_technical_paper
pdf - 6.09 MB
BDA 422 V2 - opticalCON DUO LITE
pdf - 7.29 MB

Technical Information

Product
Title opticalCON DUO LITE
Connection Type opticalCON
Gender male
Mechanical
Cable retention > 250 N
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 2500 mating cycles
Wiresize
Locking device Push-Pull
Material
Boot Rubber (EPDM)
Bushing Polyamide (PA 6) & Thermoplastic elastomer (TPU)
Insert PBT
Shell PBT
Strain relief CuZn36 Pb3 (Brass)
Dust protection cap Rubber (EPDM)
Environmental
Temperature range -40 °C to +70 °C
Protection class in mated condition IP65
Optical
Insertion loss < 0.45 dB / connection
Optical connector LC-Duplex (PC and APC)
Optical wiring ISO / IEC 11801
Optical return loss
>50 dB (PC)
>60 dB (APC)
Mobile cable
Colour black, matte
Core diameter Singlemode 9 µm, Multimode 50 µm
Cladding diameter 125 µm
Comment PVC
minimal bending radius 3 cm
Number of fibers 2
Cable retention Aramid yarn
Weigth 9 kg/km
Overal diameter 3 mm
Accessories
audio
NAO2*-H1W-A

Weatherproof opticalCON DUO coupler (adapter), LC-Duplex, 4 copper wires (0.75 mm²).

audio
CAS-FOMD

Fiber Optic Measurement Devices

CAS-FOCD-ADV

Fiber optic cleaning kit

NOR-*

Color coding ring for opticalCON cable and chassis connectors (SCNO-FDW-A)

SCNKO-L

Rubber dirt protection for opticalCON LITE cable connector (spare part)

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

Tactical patch cable EN
Tactical Patch Cable

Conventional patch cables are sensitive in terms of undercutting the minimum bending radius and lateral pressure. Neutrik’s tactical patch cables feature unique fiber design including a protection buffer which allows bendings with minimal radius and increased lateral pressure. Therefore the tactical patch cables are the right choice for permanent or semi-permanent applications.

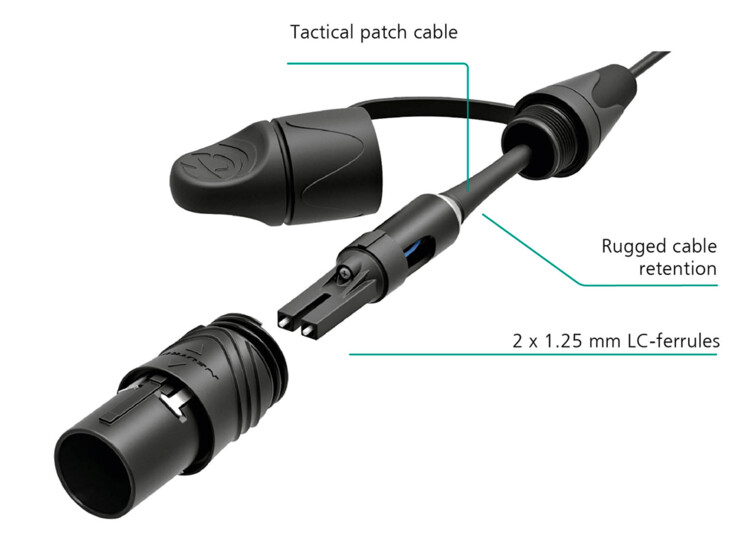

opticalCON DUO LITE Explosion DE
