opticalCON DUO
Assembled 2 fibers rugged and lightweight mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in multi- and single mode (PC or APC), military approved. Ideal for audio and broadcast networks.
The opticalCON DUO cable connector accommodates a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover. The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.
- Ruggedized and dirt protected fiber optic connection system
- Waterproof acc. to IP65 safety standard in mated condition
- 2-pole military approved robust and light weight mobile field cable with multi- or single mode fibers
- opticalCON multimode fiber cables offer laser and bend optimized OM3 fibers
- Accommodates standard optical LC-Duplex connectors
- Cable connector features rugged all metal housing and heavy duty cable retention
- Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket
- Reliable Push-Pull locking mechanism
- Easy to clean, no special tools required
- Available in different packaging versions
Technical Information
| Product | |
|---|---|
| Title | opticalCON DUO |
| Gender | male |
| Mechanical | |
|---|---|
| Cable retention | 500 N |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 5000 mating cycles |
| Wiresize | |
| Locking device | Push-Pull |
| Material | |
|---|---|
| Boot | Rubber (EPDM) |
| Bushing | Zinc diecast (ZnAl4Cu1) |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Polyacetal (POM) (brass) |
| Environmental | |
|---|---|
| Temperature range | -40°C to +75 °C |
| Protection class | in mated condition IP65 |
| Optical | |
|---|---|
| Insertion loss | < 0.5 dB / connection |
| Optical connector | LC-Duplex (PC and APC) |
| Optical wiringISO / IEC 11801 | ISO / IEC 11801 |
| Mobile cable | |
|---|---|
| Colour | black, matte |
| Core diameter | Singlemode 9 µm, Multimode 50 µm |
| Cladding diameter | 125 µm |
| Comment | PUR |
| minimal bending radius | 5 cm |
| Number of fibers | 2 |
| Cable retention | Aramid yarn |
| Weight | 23 kg/km |
| Overal diameter | 5 mm |
Fiber optic cleaning kit
Fiber Optic Measurement Devices
Weatherproof opticalCON DUO coupler (adapter), LC-Duplex, 4 copper wires (0.75 mm²).
Color coding ring for opticalCON cable and chassis connectors (SCNO-FDW-A)
The opticalCON Transceiver Adapter connects an opticalCON chassis (NO2-4FDW*) and a LC SFP transceiver
Rubber coated pollutant-protection cover for opticalCON cable connectors including front housing.
The pulling sock simplifies the installation at a pulling force.
The pulling sock simplifies the installation at a pulling force
Noise cancelling rubber protection cover for opticalCON cable connectors, including front housing.

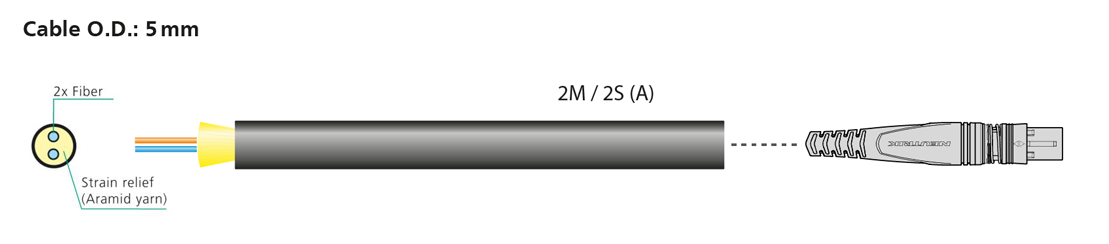

Cable cross section

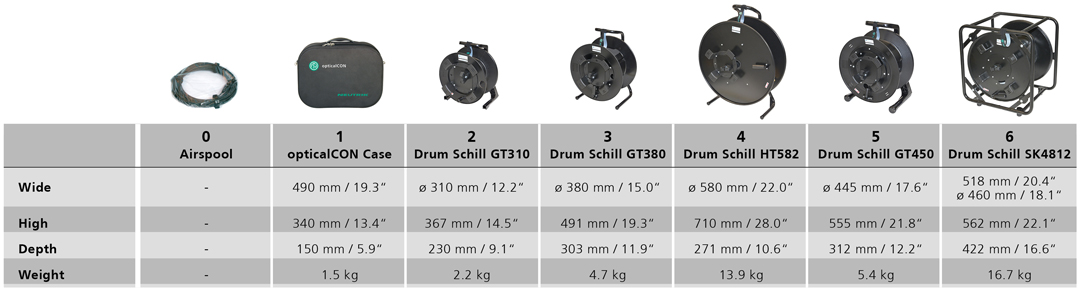

Packaging options and max. cable length
opticalCON Features
opticalCON DUO logo
