NYS-SPP-L-1
neutrik-us / Products / NYS-SPP-L1

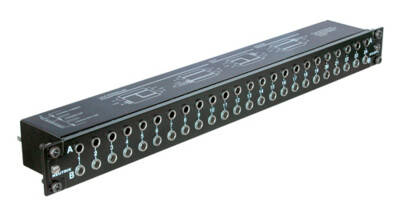

NYS-SPP-L1

Download Data Sheet

The NYS-SPP-L1 is a economical and remarkable sleek designed 1/4“ modular Patch Panel for 19“ rack mount (19“ x 1U) with a reinforced metal housing. Each of it‘s 48 PCB wired balanced channels (24 front pairs and corresponding 24 rear pairs) can either be grounded separately or in groups of individually chooseable channel numbers.
The PCBs are held securely in place by being clamped between the front and the rear panel, this grants an easy reconfiguration of the Patch Panel without the danger of loosing any small parts (e.g. nuts). The grey jack serves as an easy and distinguishable normalling identification.

Features & Benefits
  • Individual grounding available for each channel separately
  • Ruggedized metal housing
  • Improved contact design minimises wear on mated plugs
  • Economic and versatile designed 1/4" modular Patch Panel with 2 rows of jack sockets
  • 48 balanced channels with fully PCB wired jack (24 vertical PC boards), 24 front pairs and corresponding 24 rear pairs
  • Jack PC card contains 4 balanced 1/4" jacks with non-tarnishing contacts, is held securely in place without the use of nuts - no little pieces to drop, break or lose
  • Easy to change configuration by just flipping individual PC board
  • Normalling jack is coloured grey for easy identification
  • 4 designation strips included for front and rear panel



    Downloads
    nys-spp-l1-1
    pdf - 73.37 KB
    nys-spp-l1-2
    dxf - 1.4 MB
    patch-panel-nys-spp-l1
    pdf - 229.83 KB
    07 Section Accessories and Patch Panels PG DE 202202-V22
    pdf - 7.27 MB
    PatchLabel
    zip - 668.22 KB

    Technical Information

    Product
    Title NYS-SPP-L1
    Connection Type Patch Panel
    Electrical
    Signal Type AES/EBU Signals (analog)
    Contact resistance < 10 mΩ
    Contact resistance < 10 mΩ
    Dielectric strength 1 kVdc
    Frequencyrange DC to > 50 MHz
    Insulation resistance > 1 GΩ @ 500 V dc
    Channel separation > 100 dB @ 10 kHz, 600 terminated
    > 40 dB @ 6 MHz, 110 terminated
    Handles Phantom Power no
    Mechanical
    Insertion force < 20 N
    Withdrawal force > 10 N
    Lifetime > 10000 mating cycles
    Wiresize
    Locking device Retention spring
    Material
    Contacts Bronze, tin plated (Switch contacts)
    Shell ABS (Jacks)
    Front panel Steel
    Environmental
    Temperature range -30 °C to +80 °C
    Accessories
    audio

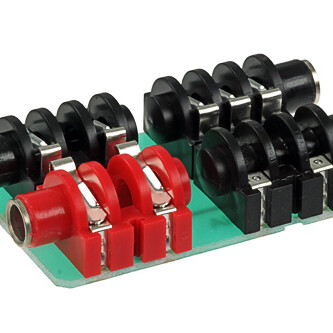

    NYS-SPCR1

    Module with switching contacts for NYS-SPP-L1

    Distributor stock search

    Enter part number and search Neutrik USA distributor's stock.

    Configuration

    Standard configuration, when delivered, is Half Normalled bottom row. The configuration can easily be changed by just flipping the individual PCB. Inserting a plug into the grey jack will always isolate the top against the bottom row. Alternative solution for send/return applications by use of NYS-SPCR1 module (see accessories).

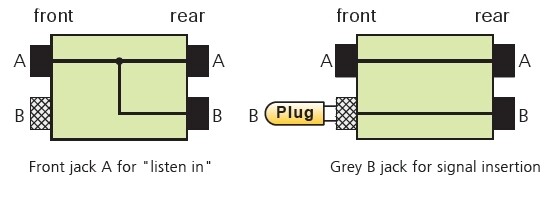

    Standard

    Beschreibung hinzufügen ...

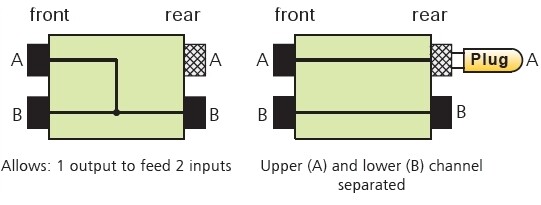

    Turned

    NYS-SPP-L1 Konfiguration gedreht

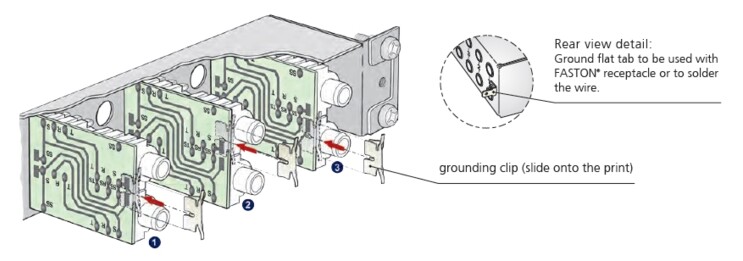

    Grounding

    The flexible grounding system, applicable for each channel separately by simply attaching the loose supplied grounding clips to the grounding pad of the corresponding channel, offers the following alternatives:

    • Individual (without grounding clip): Each channel ground (sleeve contact) is connected to the dedicated ground contact of the incoming 1/4'' plug only. This is the standard configuration for delivery.
    • Chassis common (1): The relevant channel grounds (sleeve contacts; top and bottom row) are connected to the ground flat tab via grounding clip and chassis.
    • Chassis top (2): The dedicated top channel ground (sleeve contact) is connected to the ground flat tab via grounding clip and chassis.
    • Chassis bottom (3): The dedicated bottom channel ground (sleeve contact) is connected to the ground flat tab via grounding clip and chassis.
    NYS-SPP-L1 Grounding
