NTP3RC

NTP3RC

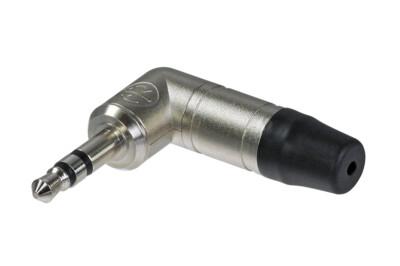

3 pole 3.5 mm audio plug, solder termination, chuck type strain relief, bushing, nickel housing, nickel contacts

The only right-angled metal bodied 3.5 mm jack plug with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Distributor Stock Search Technical Information
Download Data Sheet

Features & Benefits

  • All metal housing - robust and reliable
  • Chuck type cable clamp and rubber gland - excellent cable protection
  • Slim design - space saving

Downloads

  • Drawing NTP3RC
  • Drawing NTP3RC
  • Assembly Instruction - 3.5 mm Tiny Plug, right angle / NTP3RC
  • Product Guide - Section Plugs and Jacks

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

Technical Information

Product
Title NTP3RC
Connection Type Plug
Gender male
Electrical
Contact resistance depends on mating connector mΩ
Dielectric strength 1 kVdc
Insulation resistance > 2 GΩ (initial)
Rated voltage <50 V
Mechanical
Cable O.D. 2 - 4.5 mm
Wiresize 0,22 mm²
Wiresize 24 AWG
Wiring Solder contacts
Material
Bushing Brass (CuZn39Pb3) + PU, Ni
Contact plating 2 µm Ni (Su)
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 15 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Environmental
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +65 °C
