NPP-TB-HN
neutrik-us / Products / NPP-TB-HN

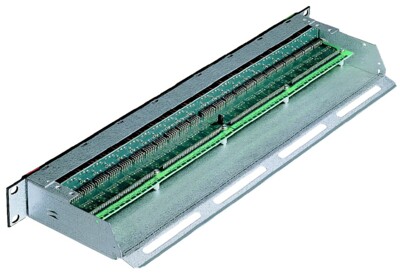

NPP-TB-HN

Download Data Sheet

2 x 24 TB (BP0316/MIL-P-642/2) jacks, half normalled bottom row (not programmable), solder terminals

The NPP-TB patch panels are equipped with gold plated, high quality long life NJ6TB-V Jacks for BPO/MIL style plugs. The panels are easily programmable for six switching configurations and offer a flexible grounding system. The NPP-TB patch panels are very robust and compactly designed for 19" rack mount (19" x 1U) with galvanized metal housing and a built-in cable bar on the rear for securing wires. There is a rear extension bar (NPP-S) available as an option. On the front side there is an attractive additional lettering area for each channel pair with a marking strip and individual snap-on colour coding plates.

Features & Benefits
  • 2 x 24 Neutrik NJ6TB-V long frame 1/4" TRS jacks acc. to BPO 316 / MIL-P-641/3
  • Very robust and compact galvanized metal housing
  • Eye catching channel identification through colored snap-on coding tabs
  • Qualified for analog and digital signals acc. AES3, 48 kHz sampling frequency
  • With high quality long life gold plated Neutrik jacks
  • Flexible grounding system



Downloads
npp-tb-hn-2
pdf - 1.39 MB
npp-tb-hn-3
dxf - 45.6 KB
07 Section Accessories and Patch Panels PG DE 202202-V22
pdf - 7.27 MB

Technical Information

Product
Title NPP-TB-HN
Connection Type Patch Panel
Mechanical
Wiresize
Locking device Retention spring
Environmental
Solderability Complies with IEC 68-2-20
Accessories
audio
NKTB*

*** DISCONTINUED *** Patch cable with NP3TB plugs

audio
NPP-C

Metal dust cover

audio
NPP-LB-*

Channel identification plates

audio
NPP-S

A second rear extention bar to fix very long cables
