NP2RX-B
neutrik-us / Products / NP2RX-B

NP2RX-B

Download Data Sheet

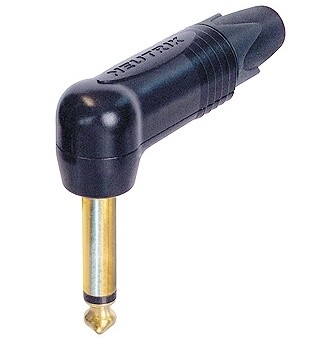

2 pole 1/4" professional right-angle phone plug, gold contacts, black shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features & Benefits
  • All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection
  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact
Downloads
np3x-2
pdf - 33.3 KB
np3x-1
dxf - 292.19 KB
professional-phone-plugs--right-angle-np_rx
pdf - 1.98 MB
02 Neutrik PG EN - Section Plugs & Jacks - 202110-V24
pdf - 6.12 MB

Technical Information

Product
Title NP2RX-B
Connection Type Plug
Gender male
Electrical
Contact resistance depends on mating connector mΩ
Dielectric strength 1 kVdc
Insulation resistance > 2 GΩ (initial)
Rated current per contact depends on mating connector A
Rated voltage < 50 V
Mechanical
Cable O.D. 4 - 7 mm
Lifetime > 1000 mating cycles
Wiresize 1 mm²
Wiresize 18 AWG
Wiring Solder contacts
Material
Bushing Polyacetal (POM) + PU
Contact plating 0.2 µm Au
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating KTL coating
Strain relief Polyacetal (POM)
Environmental
Standard compliance IEC 60603-11 / EIA RS-453
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +65 °C
Accessories
audio
BPX-*

Colored boots for PX-Series

BPX-L

Large bushing with chuck type strain relief for large cable diameters for PX-Series

audio
HTXP

Hand tool for tightening the bushing of the XLR XX series, Plug PX series and etherCON CAT6 series.

audio
PXR-*

Colored rings with flat label surface for PX-Series
