NLT4FX
neutrik-us / Products / NLT4FX

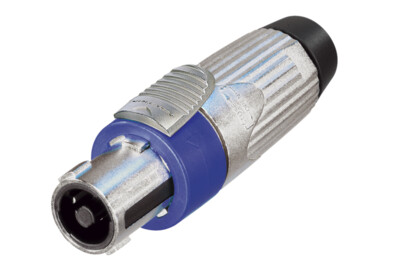

NLT4FX

Download Data Sheet

*DISCONTINUED* Please see successor NLT4FXX

4 pole female cable connector, nickel housing, chuck type strain relief

The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.

Features & Benefits
  • Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
  • Robust and durable all metal housing
  • Sealing ring provides weatherproof IP54 rating in mated condition
  • Reinforced metal quick lock system for ease and precise locking
  • Extra large solder contacts for up to 6 mm² (AWG 10) wires
  • Mate with all available speakON products
Downloads
nlt4fx-2
pdf - 42.28 KB
strichzeichnung-nlt4fx
dxf - 812.29 KB
nlt4fx
stp - 3.73 MB
bda-118---speakon-stx-series
pdf - 1.2 MB
03 Section speakON PG EN 202202-V23
pdf - 5.55 MB
speakon-wiring-suggestion
pdf - 342.87 KB

Technical Information

Product
Title NLT4FX
Connection Type speakON
Gender female
Electrical
Contact resistance < 2 mΩ (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 10 GΩ
Rated current per contact 40 A rms continuous
Rated current per contact 50 A audiosignal, duty cycle 50 %
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Cable O.D. 9 - 16 mm
Cable retention ≥ 220 N (subject to cable O.D. and material)
Lifetime > 5000 mating cycles
Wiresize 6 mm²
Wiresize 10 AWG
Wiring Solder contacts
Locking device Quick Lock (latch)
Material
Contact plating 4 µm Ag
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6 30 % GR)
Locking element Zinc diecast (ZnAl4Cu1)
Shell Zinc diecast (ZnAl4Cu1)
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 HB
Protection class IP 54 (mated condition)
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
