NL8MDXX-V-3

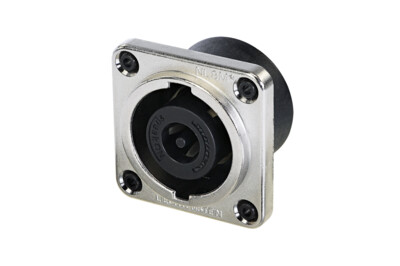

8 pole male chassis connector, metal square G-size housing, self tapping screw holes, vertical PCB mount
This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections and feature a unique metal locking system, making contact only once fully locked. The receptacles are robust, versatile and easy to terminate.
- IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
- Current rating 25 A rms
- Extremely robust metal flange and glass reinforced V-0 material for harsh and demanding environment
- Precise keyway for secure mating
Technical Information
| Product | |
|---|---|
| Title | NL8MDXX-V-3 |
| Gender | male |
| Electrical | |
|---|---|
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | 1.5 kVac |
| Insulation resistance | > 0.1 GΩ (after dampheat) |
| Rated current per contact | 25 A rms continuous (acc. to IEC 61984) |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an mains or power supply connector (AC / DC)! |
| Mechanical | |
|---|---|
| Lifetime | > 5000 mating cycles |
| Termination | vertical PCB mount |
| Locking device | Quick Lock |
| Mounting direction | Rear mounting |
| Chassis shape | square G-size flange |
| Layout | self tapping screw holes (A-Screw) |
| Material | |
|---|---|
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Shell | Zinc diecast, Nickel plated |
| Insert | Polyamide (PA 6.6) |
| Shell coating | Black KTL |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
| Flammability | UL 94 V-0 |
| Solderability | Complies with IEC 68-2-20 |
The dummyPLUG NDL8 for all 8 pole male Neutrik speakON chassis connectors enables you to simplify cabling.
Gasket for speakON G-size housings for an airtight connection between chassis and frontpanel (also suitable for Amphenol EP cutouts)
Black self tapping PLASTITE® screw 2.9 x 1.05 tri-rondular configuration, 8 mm long, panhead
