etherCON CAT6 self termination
neutrik-us / Products / NE8MC6-MO

NE8MC6-MO

Download Data Sheet

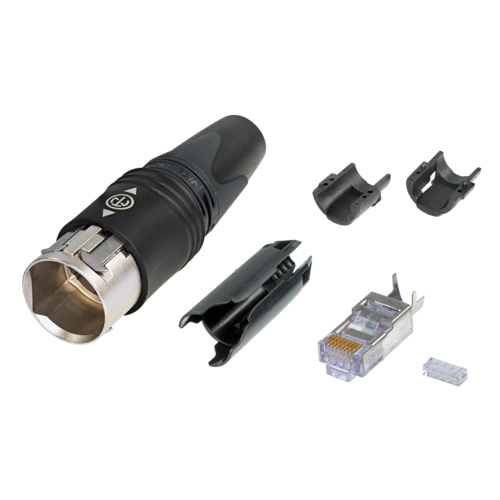

The set NE8MC6-MO includes a cable plug carrier offering a robust metal shell with Push-Pull locking system, proven Neutrik chuck-type strain relief and a CAT6 RJ45 plug. The set can accommodate STP und UTP cables with O.D. of 5.5 to 6.5mm and gauge of AWG 22 to 28 solid or stranded wire. This self-termination version is water-protected according to IP65.

Attention! Intermates ONLY with NE8FDY-C6* Cat 6 receptacles.
Not compatible with CAT5 and CAT6A chassis connectors.

Features & Benefits
  • Complies with CAT6 specifications according to TIA / EIA 568B, ISO / IEC 11801, EN 50173
  • CAT6 compliant - data rate up to 10 GBit/s
  • IP65 - Dust and waterproof in mated condition
  • Shielded system - high noise immunity and EMI protection
  • Push Pull mating - secure and proven locking system
  • Unique Neutrik chuck-type strain relief
  • Color coding with accessory BXX-* - to guarantee IP65 protection, boot has to be mounted with metal ring of NE8MC6-MO
Downloads
Drawing NE8MC6-MO
pdf - 255.4 KB
Drawing NE8MC6-MO
dxf - 1.04 MB
BDA 194 V2 - etherCON CAT6 NE8MC6
pdf - 3.45 MB
experts-report-ethercon-cat6
pdf - 134.06 KB

Technical Information

Product
Title NE8MC6-MO
Connection Type etherCON
Gender male
Mechanical
Cable O.D. 5.5 - 6.5 mm
Insertion force ≤ 40 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize
Wiresize 28 - 22 AWG
Locking device Push-Pull
Material
Boot Polyurethan
Bushing Polyamide (PA 6 15 % GR)
Contact plating 0.7 µm Au over 1.2 µm Ni plating
Contacts Bronze (CuSn8)
Insert Polyamdie (PA 6.6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
CAT6 Plug Molex Part Nr. 44915-0021
Environmental
Flammability UL 94 HB
Standard compliance CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173
Protection class IP 65
Temperature range -10 °C bis +60 °C
Accessories
audio
BXX-*

Colored bushings

audio
HTXP

Hand tool for tightening the bushing of the XLR XX series, Plug PX series and etherCON CAT6 series.

audio
HTX

Hand tool for tightening the bushing of the XLR X, XCC, FX-SPEC series and etherCON cable connector carrier series as well as the XLR XX and etherCON CAT6 series.
