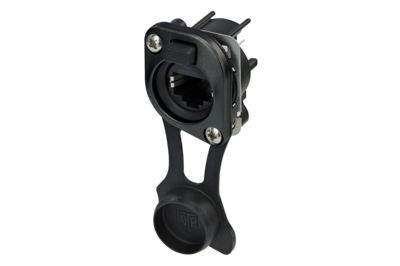

NE8FDV-B-TOP_open

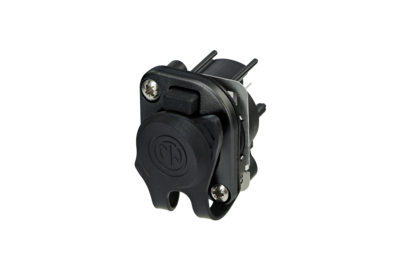

NE8FDV-B-TOP_closed
1/2
neutrik-us / Products / etherCON® RJ45 Connectors / etherCON® Chassis Connectors / etherCON® TOP Series / NE8FDV-B-TOP

NE8FDV-B-TOP

Download Data Sheet

Vertical PCB panel mount RJ45 receptacle, combined with sealing kit SE8FD-TOP, max. panel thickness 4 mm, mounting screws included.

The etherCON series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lighting network applications with IP65 rating. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

ATTENTION: Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Features & Benefits
  • IP65 rated (in combination with etherCON TOP Connector or sealing cap closed)
  • Uses high impact UV-resistant and gasket materials
  • Useable with any standard RJ45 plug
  • CAT5e / Class D according to TIA/EIA 568C and ISO/IEC 11801
  • Approved latch lock system
  • Ground panel connection
  • Mountable from the front of the panel
  • PoE type 4 class 8 (100W) acc. IEEE 802.3bt
Downloads
30009931_1_NE8FDV-TOP
stp - 6.76 MB
20004015_-_NE8FDV-TOP
pdf - 239.75 KB
20004015_-_NE8FDV-B-TOP
dxf - 1.25 MB
BDA 664 V1 - etherCON TOP - NE8FDV-B-TOP and NE8FDP-B-TOP
pdf - 712.44 KB

Technical Information

Product
Title  NE8FDV-B-TOP
Type  Chassis
Connection Type  etherCON
Gender Female
Electrical
Contact resistance  < 50 mΩ
Dielectric strength 1 kVdc
Frequency range 1 – 100 MHz
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Rated voltage ≤ 57 V
Transmission performance CAT5e acc. to TIA/EIA 568C channel specifications
CLASS D acc. to ISO/IEC 11801 channel specifications
Power over Ethernet PoE type 4 class 8 (100W) acc. IEEE 802.3bt
Mechanical
Insertion force  ≤ 20 N 
Withdrawal force  ≤ 20 N 
Lifetime  > 1000 mating cycles 
Panel thickness 2 mm – 4 mm , 0.08” – 0.16”
Wiring Vertical PCB mount
Locking device Latch lock
Chassis shape D
Material
Contact plating 0.2 µm Gold (Au) over Nickel (Ni) plating
Contacts Bronze (CuSn8)
Flange Zinc diecast (ZnAl4Cu1)
Flange plating  Black chromium
Shell planting Black KTL
Environmental
Flammability acc. to UL 94 V-0
Protection class IP65 (mated) 
Temperature range  -30 °C to +80 °C 
Solderability Complies with IEC 68-2-20
Standard compliance ISO/IEC 11801-1 Ed. 1.0 (2017-11)
IEC 60603-7-3 Ed.2.0 (2010-04)
IEC 60512-99-002 Ed.2.0 (2022-01)
IEC 60512-9-3 (2011-06)
Accessories
SCCD-W

Spring-loaded sealing cover

SE8FD-TOP - Rubber sealing view 1.png
SE8F-TOP

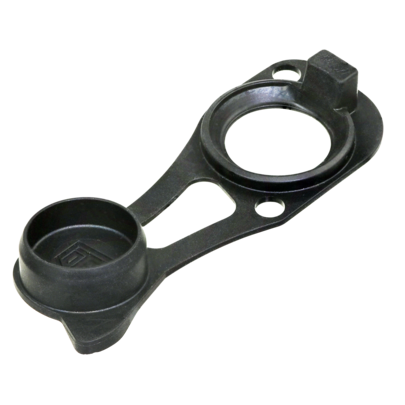

Rubber sealing gasket protects etherCON D-Type TOP
