etherCON_NE8FDPS-TOP persp front_RGB etherCON_NE8FDPS-TOP persp back_RGB

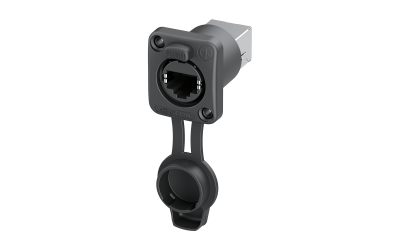

etherCON_NE8FDPS-TOP persp front_RGB

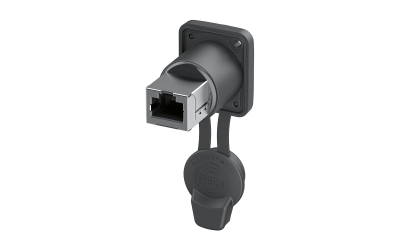

etherCON_NE8FDPS-TOP persp back_RGB
1/2
neutrik-us / Products / etherCON® RJ45 Connectors / etherCON® Chassis Connectors / etherCON® TOP Series / NE8FDPS-TOP

NE8FDPS-TOP

Download Data Sheet

The "etherCON TOP airtight" chassis connector is the perfect solution for demanding outdoor applications and the harshest conditions. This innovative product is part of the etherCON product group and belongs to our premium data line. With an impressive array of features and a particular focus on protection and performance, the "etherCON TOP airtight" is the choice for professionals who require absolute reliability.

With the etherCON TOP airtight, you can count on a secure connection, even in the most extreme outdoor conditions. Rely on its protective features and high performance to ensure data connections that meet the most stringent requirements. Trust in TRUE OUTDOOR PROTECTION with this outstanding chassis connector from NEUTRIK – your link to the future.

Features & Benefits
  • IP65 & IP67 rating to protect from water and dust ingress (even in unmated and open sealing cap condition)
  • Corrosion resistance
  • UV protection
  • Airtightness for production line tests to ensure TRUE OUTDOOR PROTECTION on devices
  • 100 W power delivery according to IEEE 802.3bt Type 4 Class 8
  • Seamless design language of etherCON TOP & xlrCON TOP
  • Easy maintenance due to front-mount design
  • ESD protection up to 2 kV
Downloads
3D File NE8FDPS-TOP
stp - 5.02 MB
Drawing NE8FDPS-TOP
pdf - 312.5 KB
Drawing NE8FDPS-TOP
dxf - 1.12 MB
Application Notes TRUE OUTDOOR PROTECTION
pdf - 4.88 MB
BDA 692 V2 - etherCON TOP airtight
pdf - 2.19 MB
NEUTRIK TOP DATA Connectors
pdf - 1.51 MB

Technical Information

Product
Title NE8FDPS-TOP
Product family etherCON
Connection type chassis connector
Gender female
Electrical
Contact resistance < 10 mΩ
Dielectric strength 1 kV DC
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Rated voltage ≤ 57 V
Transmission performance CAT5e acc. to TIA/EIA 568C channel specifications
CLASS D acc. to ISO/IEC 11801 channel specifications
Frequency range 1-100 MHz
Power over Ethernet PoE type 4 class 8 acc. IEEE 802.3bt
Mechanical
Insertion force < 30 N
Withdrawal force < 30 N
Lifetime min. 1000 mating cycles
Locking device Latch lock
Wiring RJ45 Feedthrough
(Wiring scheme enclosed)
Chassis shape D
Mounting direction Front mounting
Material
Contact plating Gold plating
Contacts Brass
Flange PA66 (hard component) + EPTR (soft component)
Housing PA66
Environmental
Flammability V-0 acc. to UL94
Standard compliance UL 1863
CSA C22.2 No. 182.4-M90
for fire enclosure acc. to IEC 62368-1:2018, EN IEC 62368-1:2020 +A11:2020, UL 62368-1 Ed.3, CSA C22.2 No. 62368-1:19
for outdoor enclosure acc. to IEC 62368-1:2018 Annex Y, EN IEC 62368-1:2020 +A11:2020 Annex Y
Regulation (EU) 2023/988
Regulation (UK) 2016 No. 1101
IEC 60529:1989 +AMD1:1999 +AMD2:2013
Ingress protection class IP65
IP67
Temperature range -30 °C to +70 °C
