NBB75FA
neutrik-us / Products / NBB75FA

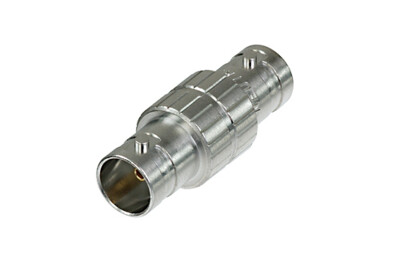

NBB75FA

Download Data Sheet

The BNC feed through coupler offers a true 75 Ω design for serial and digital (HD & UHD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.

Features & Benefits
  • Gold plated cage type center contact
  • True 75 Ω design meets the stringent HD & UHD requirements



Downloads
nbb75fa-1
dxf - 374.51 KB
nbb75fa-2
pdf - 43 KB
05 Section BNC Connectors PG 202311 EN -V25
pdf - 3.94 MB

Technical Information

Product
Title NBB75FA
Connection Type BNC 75 Ω
Gender female
Electrical
Signal Type HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
Contact resistance ≤ 3 mΩ (inner)
Contact resistance ≤ 2 mΩ (outer)
Dielectric strength 1.5 kVdc
Insulation resistance > 5 GΩ
Rated voltage <50 V
VSWR ≤1.03/>37 dB up to 1 GHz
≤1.05/>32 dB up to 2 GHz
≤1.08/>28 dB up to 3 Ghz
Mechanical
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Bayonett
Material
Contacts Brass (CuZn39Pb3) (ground contact)
Insert PTFE
Shell Brass (CuZn39Pb3)
Environmental
Temperature range -30 °C bis +85 °C

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

New cage type contact
  • Closed contact design - extremely robust
  • Gold plated cage type clip - best possible shielding and lowest contact resistance
