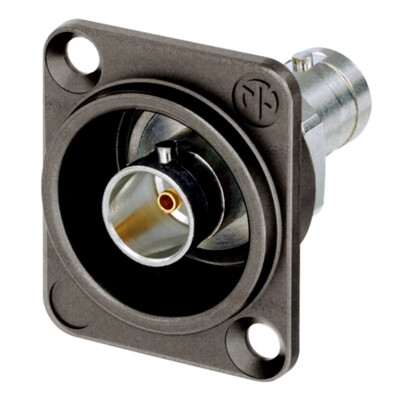

NBB75DFGX

Grounded UHD BNC chassis connector, feedthrough in antraloy plated D-shape housing

Neutrik's UHD BNC chassis connectors offer low return loss values at high frequencies specific for high resolution video signal transmission. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing

Features & Benefits

Optimized gold plated cage type center contact for UHD signals as 4K or 8K
Swiss antraloy plating
Grounded panel mount
Standard D-shape housing provides flush mounting and protection from damage
Color coding possible
Fully compatible with conventional BNC cable connectors

Downloads

white-paper-neutrik-uhd

pdf - 1.82 MB

uhd-bnc-measurement

pdf - 5.29 MB

05 Section BNC Connectors PG 202311 EN -V25

pdf - 3.94 MB

Technical Information

Product
Title	NBB75DFGX
Connection Type	BNC 75 Ω
Gender	female

Electrical
Contact resistance	≤ 3 mΩ (inner)
Contact resistance	≤ 2 mΩ (outer)
Dielectric strength	1.5 kVdc
Impedance	75 Ω
Insulation resistance	> 5 GΩ
Rated voltage	< 50 V
VSWR	≤1.06 / >30 dB up to 6 GHz ≤1.13 / >24 dB up to 12 GHz ≤1.22 / >20 dB up to 18 Ghz
Signal type	UHD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV

Mechanical
Insertion force	< 25 N
Lifetime	> 1000 mating cycles
Wiresize
Locking device	Bayonett
Mounting direction	Front mounting
Chassis shape	D

Material
Contacts	Brass (CuZn39Pb3), 0.2 µm AuCo (center contact)
Insert	PTFE
Shell	Polyacetal (POM) (insulation shell)
Shell plating	Antraloy
D-shape housing	Zinc diecast (ZnAl4Cu1)

Environmental
Temperature range	-30 °C to +85 °C

Accessories

audio

DSS-*

Colored lettering plate for D-shape-connectors

M3 mounting frame

Hinged cover

Dust protection cover for female chassis connectors

SCCD-W

Spring-loaded sealing cover

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

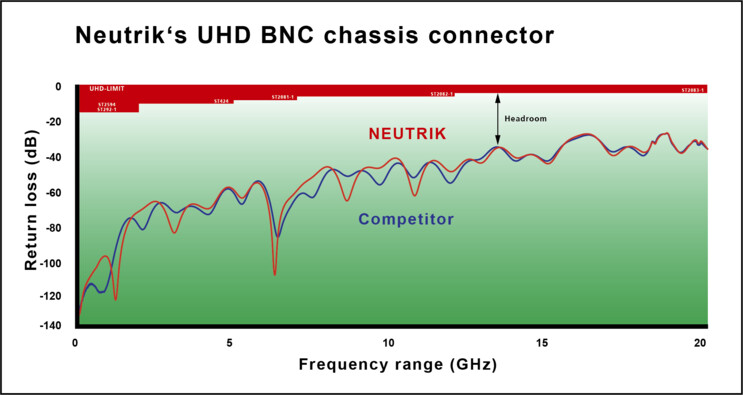

Optimized Return Loss

Due to optimized insulator design the Neutrik rearTWIST UHD BNC chassis connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.

For more details see Neutrik UHD BNC White Paper.

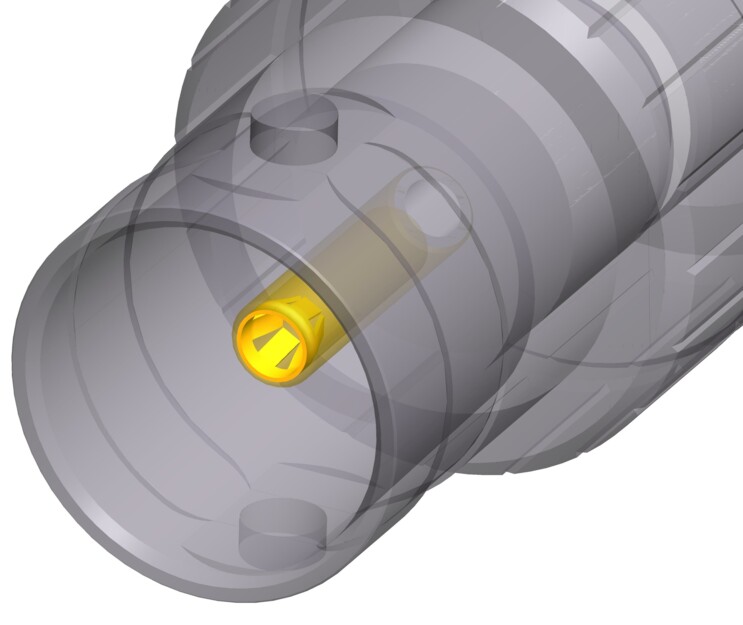

New cage type contact

Closed contact design - extremely robust
Gold plated cage type clip - best possible shielding and lowest contact resistance
