NBB75DFGB

Download Data Sheet

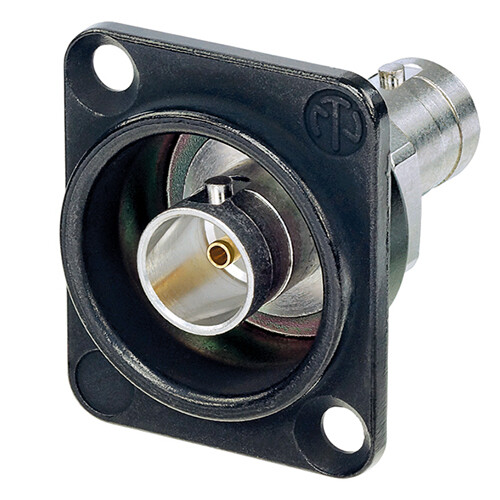

Grounded BNC chassis connector, feedthrough in black D-shape housing

Neutrik's BNC chassis connectors offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).

Features & Benefits
  • Gold plated cage type center contact
  • True 75 Ω design meets the stringent HD requirements
  • Grounded panel mount
  • Standard D-shape housing - provides flush mounting and protection from demage
  • Color coding possible



    Downloads
    nbb75dfg-2
    pdf - 34.3 KB
    nbb75dfg-3
    dxf - 265.17 KB
    3-d-nbb75dfi
    stp - 107.62 KB
    05 Section BNC Connectors PG 202311 EN -V25
    pdf - 3.94 MB

    Technical Information

    Product
    Title NBB75DFGB
    Connection Type BNC 75 Ω
    Gender female
    Electrical
    Signal Type HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
    Contact resistance ≤ 3 mΩ (inner)
    Contact resistance ≤ 2 mΩ (outer)
    Dielectric strength 1,5 kVdc
    Impedance 75 Ω
    Insulation resistance > 5 GΩ
    Rated voltage <50 V
    VSWR ≤1.03/>37 dB up to 1 GHz
    ≤1.05/>32 dB up to 2 GHz
    ≤1.08/>28 dB up to 3 Ghz
    Mechanical
    Insertion force < 25 N
    Lifetime > 1000 mating cycles
    Wiresize
    Locking device Bayonett
    Mounting direction Front mounting
    Chassis shape D
    Material
    Contacts Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
    Insert PTFE
    Shell Polyacetal (POM) (Insulation Sheell)
    Shell plating Optalloy®
    D-Shape housing Zinc diecast (ZnAl4Cu1) gal black chrome plating
    Environmental
    Temperature range -30 °C to +85 °C
    Accessories
    audio
    DSS-*

    Colored lettering plate for D-shape-connectors

    MFD

    M3 mounting frame

    audio
    SCDX

    Hinged cover

    audio
    SCF

    Dust protection cover for female chassis connectors

    SCCD-W

    Spring-loaded sealing cover

    SCD-W

    Universal sealing cap

    Distributor stock search

    Enter part number and search Neutrik USA distributor's stock.

    New cage type contact
    • Closed contact design - extremely robust
    • Gold plated cage type clip - best possible shielding and lowest contact resistance
