neutrik_NAUSBC-5G-FL25_persp front_RGB neutrik_NAUSBC-5G-FL25_persp back_RGB

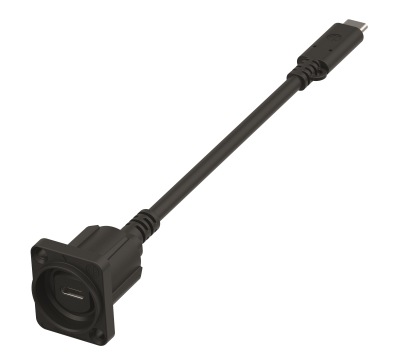

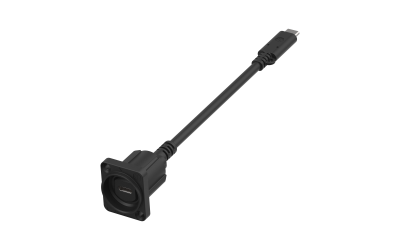

neutrik_NAUSBC-5G-FL25_persp front_RGB

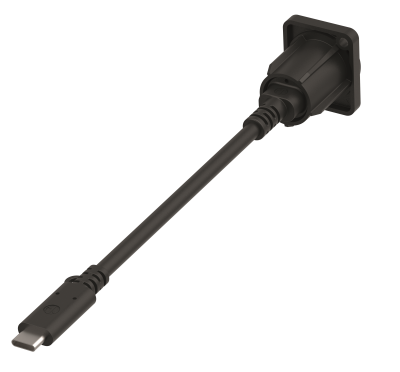

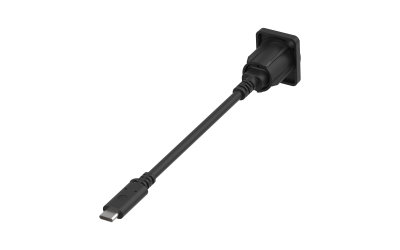

neutrik_NAUSBC-5G-FL25_persp back_RGB
1/2
neutrik-us / Products / DATA CABLES / essential DATA CABLES / NAUSBC-5G

NAUSBC-5G

Download Data Sheet

The NEUTRIK® USB Type-C 5G chassis connectors are professional-grade, D-shape panel mount connectors featuring an integrated fly-lead patch cable. Designed for robust feedthrough integration in rack systems and devices, these connectors enable reliable USB-C data transmission at up to 5 Gbps and support power delivery of up to 100 W (20 V / 5 A) – ideal for demanding data transfer and charging applications in professional environments.

For a fully optimized solution, the chassis connectors can be seamlessly paired with the essential DATA CABLES product family from NEUTRIK®. This range includes three high-performance USB-C cable variants, supporting data rates from 480 Mbps to 40 Gbps and power delivery from 60 W to 240 W, ensuring compatibility across a wide spectrum of devices and use cases.


Features & Benefits
  • 100 W (20 V / 5 A) Power Delivery according to USB PD 3.1
  • 5 Gbps according to USB 3.2 Gen 1x1
  • Rugged D-shape panel mount design (front- and rear-mount capable)
Downloads & Links
2D PDF NAUSBC-5G
pdf - 373.28 KB
3D PDF NAUSBC-5G-FL10
pdf - 1.42 MB
3D PDF NAUSBC-5G-FL15
pdf - 1.42 MB
3D PDF NAUSBC-5G-FL20
pdf - 1.42 MB
3D PDF NAUSBC-5G-FL25
pdf - 1.42 MB
2D DXF NAUSBC-5G
dxf - 1.73 MB
3D STP NAUSBC-5G-FL10
stp - 2.27 MB
3D STP NAUSBC-5G-FL15
stp - 2.27 MB
3D STP NAUSBC-5G-FL20
stp - 2.27 MB
3D STP NAUSBC-5G-FL25
stp - 2.27 MB

Technical Information

Product
Title NAUSBC-5G-FL*
Product group USB
Connection type USB Type C
Description PLEASE NOTE: Preference will vary depending on your additional hardware and software components & configurations.
Electrical
Rated current per contact 5 A
Rated voltage 20 VDC
Power delivery 100 W acc. to USB PD 3.1
Transmission performance 5 Gbps acc. to USB 3.2 Gen 1x1
Mechanical
Lifetime 10'000 mating cycles
Locking device Without locking device
Material
Contact plating AU
Contacts Copper Alloy
Cable Jacket Type PVC
Shell Connector: PVC
Chassis Connector: Polyamide (PA 66)
Environmental
Flammability V-0 acc. to UL94
Temperature Range -15°C to +60°C
Standart compliance Regulation (EU) 2011/ 65
Regulation (EU) 2023/988
Regulation (UK) 2016 No. 1101
Ingress protection class IP20
Article Variants



Article nameDetailsOrder code
NAUSBC-5G-FL10USB Type C 5G / 100W (f) (m) D-shape fly-lead 10 cm chassis connector NAUSBC-5G-FL10
NAUSBC-5G-FL15USB Type C 5G / 100W (f) (m) D-shape fly-lead 15 cm chassis connector NAUSBC-5G-FL15
NAUSBC-5G-FL20USB Type C 5G / 100W (f) (m) D-shape fly-lead 20 cm chassis connector NAUSBC-5G-FL20
NAUSBC-5G-FL25USB Type C 5G / 100W (f) (m) D-shape fly-lead 25 cm chassis connector NAUSBC-5G-FL25
