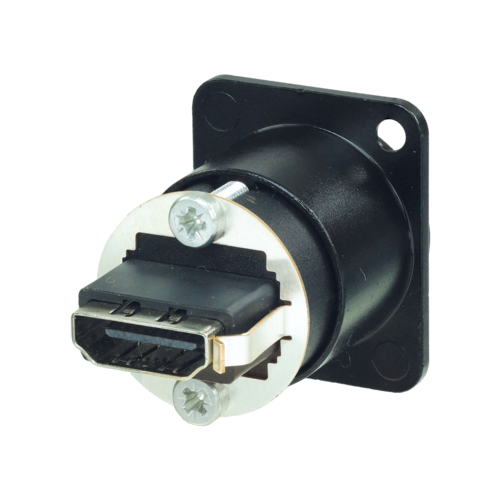

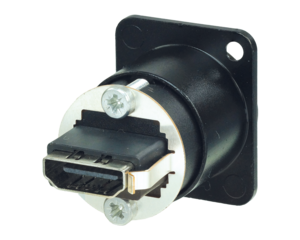

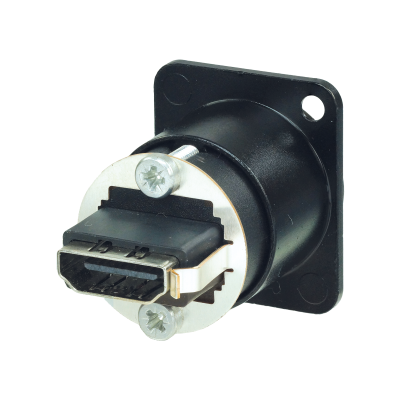

VORSCHAUBILD - NAHDMI-W-B rear
1/2
neutrik-us / Products / NAHDMI-W-B

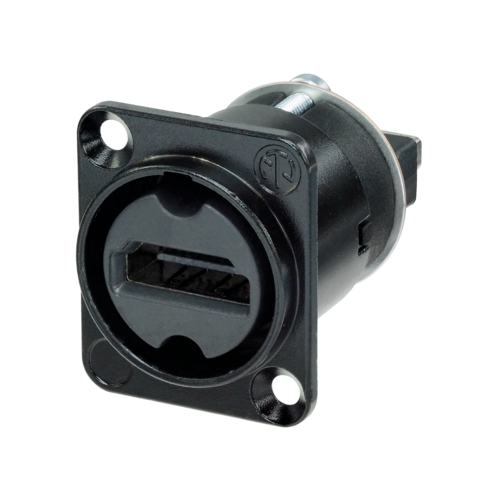

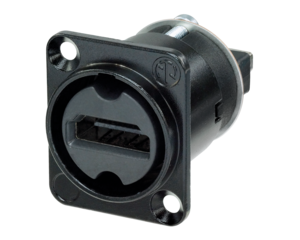

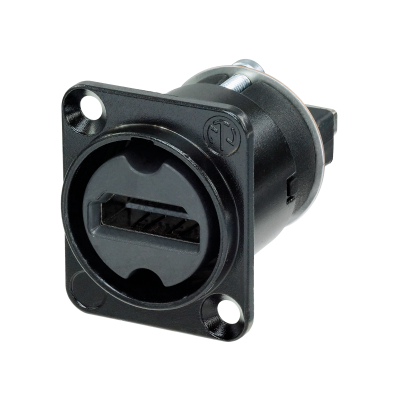

NAHDMI-W-B

Download Data Sheet

HDMI feedthrough adapter, black D-shape housing.

Compatible with both standard HDMI patch cables and Neutrik’s locking, pre-terminated NKHDMI-* cable assemblies.

Easily integrated into video networks, Neutrik's HDMI solutions transmit video signals at the full HDMI 2.0 specification with cables up to 3 meters in length.

Features & Benefits
  • Data rate up to 18 GBit/s
  • To transmit any digital TV and PC video format including high-definition video (HDTV)
  • HDMI feedthrough adapter with 19 pole HDMI receptacle at both ends
  • IP65 ingress protection in mated condition with NKHDMI-* and SCDP-* sealing gasket
  • Universally accepted standard D-shape housing
  • Removable screen to chassis grounding
  • Shielded system - high noise immunity and EMI protection due to continuous 360 degree shield
Downloads
Drawing NAHDMI-W-B
pdf - 235.08 KB
Drawing NAHDMI-W-B
dxf - 1003.58 KB
nahdmi
stp - 152.37 KB
multimedia-series-ip-65-test-report
pdf - 2.58 MB

Technical Information

Product
Title NAHDMI-W-B
Connection Type Adapter
Gender female
Mechanical
Wiresize
Locking device Push-Pull
Mounting direction Front or rear mounting (max 2 mm panel thickness)
Chassis shape D
Lifetime > 1000 mating cycles
Material
Contact plating Au
Contacts Brass (CuZn39Pb3)
Insert
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Environmental
Flammability UL 94 V-0
Standard compliance HDMI 2.0
Temperature range -25 °C to +85 °C
Accessories
audio
DSS-*

Colored lettering plate for D-shape-connectors

MFD

M3 mounting frame

audio
SCDX

Hinged cover

SCCD-W

Spring-loaded sealing cover

SCD-W

Universal sealing cap

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

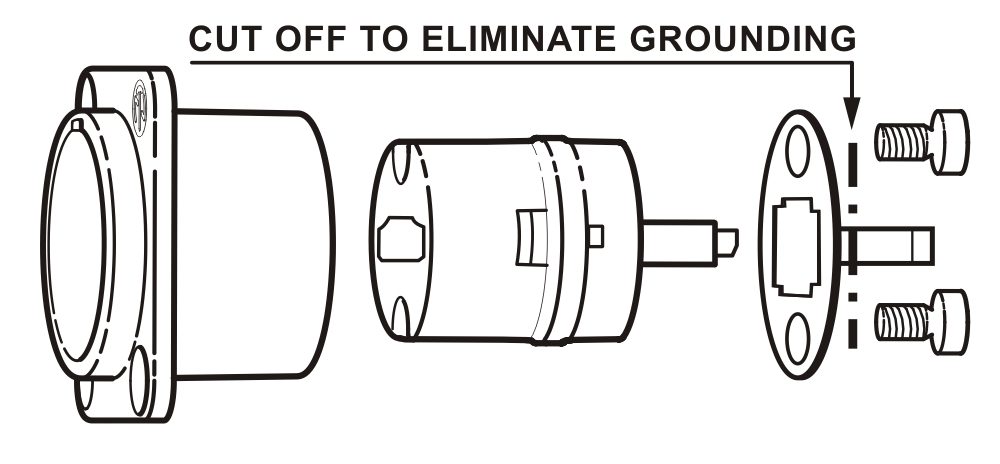

Removable screen to chassis grounding

NAHDMI-W romovable grounding
