Product | |

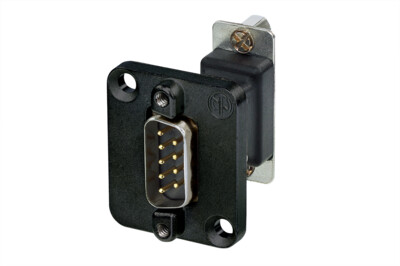

Title | NADB9MF-B |
Gender | male |
Electrical | |
Contact resistance | 30 mΩ |
Insulation resistance | > 5 GΩ |
Number of electronical contacts | 9 |
Rated current per contact | 3 A |
Rated voltage | 50 V ac |
Dielectric strength | > 0.5 kVac |
Mechanical | |
Panel thickness | 4 mm |
Wiresize | |
Wiring | Feedthrough |
Mounting direction | Front mounting |
Chassis shape | D |
Material | |
Contact plating | Au |
Contacts | Brass (Pb-free) |
Insert | Steel , tin plated, PBT |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Black chromium |
Environmental | |
Flammability | UL 94-V0 |
Temperature range | -25 °C to +85 °C |
