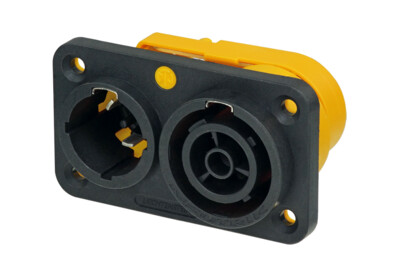

NAC3PX
Appliance inlet-outlet combination, 1/4'' flat tab terminals
The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features & Benefits
Appliance inlet-outlet combination for daisy-chaining
- True mains connector with breaking capacity (CBC)
- Lockable 16 A single phase connector (USA: 20 A)
- Easy and reliable twist lock system
- Extremely robust and reliable
- ENEC certified according to IEC 60320
- UL recognized components
-

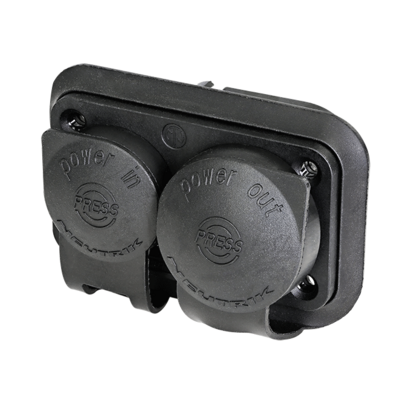

IP65 ingress protection in combination with SCNAC-PX (mated or with closed cap)
Downloads
Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25
pdf - 7 MB
bda-332---powercon-true1-nac3px
pdf - 891.29 KB
ip-test-report
pdf - 1.61 MB
BDA 380 - powerCON TRUE 1 - NAC3MX-W
pdf - 4.87 MB
nac3px-1
dxf - 1.23 MB
nac3px-2
pdf - 428.52 KB
nac3px-4
stp - 214.37 KB
CoC_Chassis_2018-07-03
pdf - 349.32 KB
NAC3PX_VDE_Certificate
pdf - 157.2 KB
Technical Information
| Product | |
|---|---|
| Title | NAC3PX |
| Electrical | |
|---|---|
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 0.1 GΩ (after damp heat test IEC 68-2-30) |
| Number of electrical contacts | 2 + PE |
| Rated current per contact | 16 A rms (USA: 20 A) |
| Rated voltage | 250 V ac |
| Mechanical | |
|---|---|
| Lifetime | > 5000 mating cycles |
| Wiresize | 2.5 mm² |
| Wiresize | 12 AWG |
| Material | |
|---|---|
| Contact plating | 2 µm Ag |
| Locking element | Stainless steel |
| Shell | Polyamide (PA 6.6) |
| Contacts | Spring Copper (CuSn0.2) |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Temperature range | -30 °C - +80 °C |
