neutrik-us > Products > NAC3MM-1
NAC3MM-1

NAC3MM-1

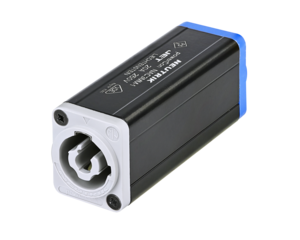

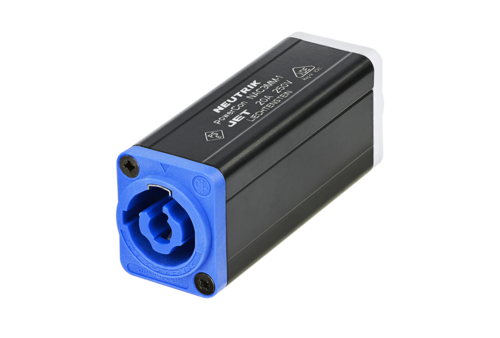

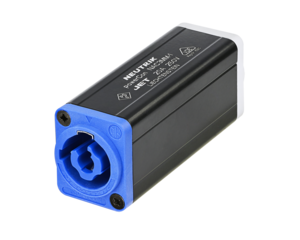

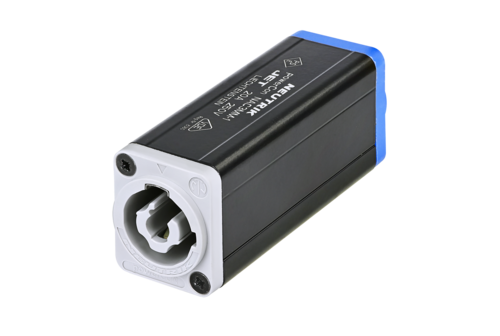

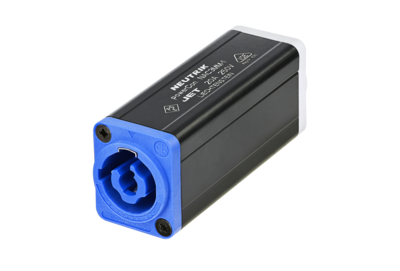

powerCON NAC3MPA-1 (power in) - powerCON NAC3MPB-1 (power out), coupler for linking cables

Download Data Sheet
Selection of topics
Downloads Distributor Stock Search Technical Information
Download Data Sheet

Downloads

  • Drawing NAC3MM-1
  • Drawing NAC3MM-1
  • 3D File NAC3MM-1
  • VDE Certificate powerCON 20 A
  • Product Guide - powerCON and Circular Connectors
  • Product Guide - Section Accessories

powerCON 20 A

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

Technical Information

Product
Title NAC3MM-1
Connection Type Adapter
Gender male
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 4 kVdc
Insulation resistance > 0.1 GΩ (after damp heat test IEC 68-2-30)
Rated current per contact 20 A rms
Rated voltage 250 V ac
Mechanical
Lifetime > 1000 mating cycles
Wiresize
Locking device Quick Lock
Material
Contact plating 2 µm Ag
Locking element Steel Ck67
Shell Polyamide (PA 6.6 30 % GR)
Contacts Bronze (CuNi1Si0.2)
Environmental
Flammability UL 94 V-0
Protection class IP 20 (mated)
Safety Requirements EN/IEC 61984
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
