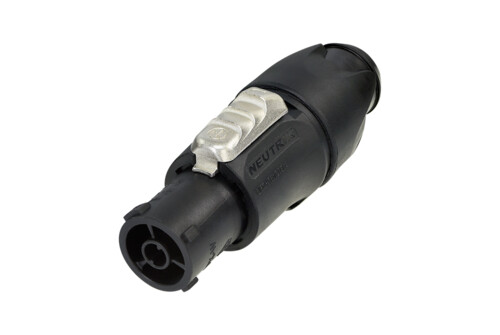

NAC3FX-W-TOP

NAC3FX-W-TOP

Locking female cable connector, screw terminals

The powerCON TRUE1 TOP is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Distributor Stock Search Technical Information Accessories
Download Data Sheet

Features & Benefits

  • Heavy duty sealed power connector for harsh and demanding environment
  • Uses high impact UV-resistant materials
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • Unique Neutrik cable retention
  • ENEC certified according to IEC 60320
  • UL498 certified

Downloads

  • Drawing NAC3FX-W-TOP
  • Drawing NAC3FX-W-TOP
  • 3D File NAC3FX-W-TOP
  • Assembly Instruction - powerCON TRUE1 TOP NAC3FX-W-TOP
  • Product Guide TOP
  • Safety Notice - powerCON TRUE1 TOP
  • Operating Instruction - powerCON TRUE1 TOP Power IN
  • Operating Instruction - powerCON TRUE1 TOP Cable Connector
  • Certificate ENEC 40038379 (2023-03-16)
  • CB Certificate NAC3FX-W + NAC3FX-W-TOP
  • Certificate UL E343813 (2023-01-03)

Links

  • UL_Certificate (ECBT2.E343813)
  • cUL Certificate (ECBT8.E343813)

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

Technical Information

Product
Title NAC3FX-W-TOP
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 0,1 GΩ (after damp heat test IEC 68-2-30)
Number of electronical contacts 2 + PE
Rated curreRating Europe EN 60320-1: 16 A 250 V AC
Rating USA UL 498: 20 A 250 V AC
Mechanical
Cable O.D. 6 - 12 mm
Lifetime > 5000 mating cycles
Wiresize 1.0 - 2.5 mm²
Wiresize 12 AWG
Material
Contact plating 2 µm Ag
Contacts Bronze (CuSn0.2)
Insert Polyamide (PA 6.6 30 % GR)
Locking element ZuAl4Cu1
Shell Polyamide (PA 6.6 30 % GR)
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 V-0
Temperature range -30 °C to +80 °C

Accessories

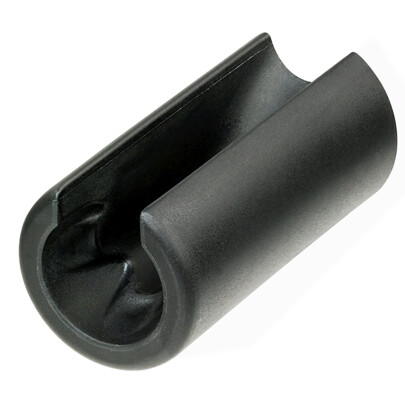

HTAC
HTAC

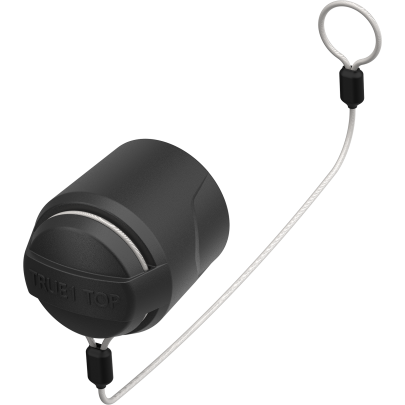

SCNAC-FX_LQ

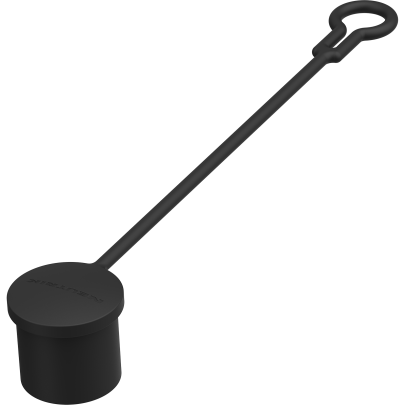

SCNAC-FX
