NAC3FPX-WOT-TOP

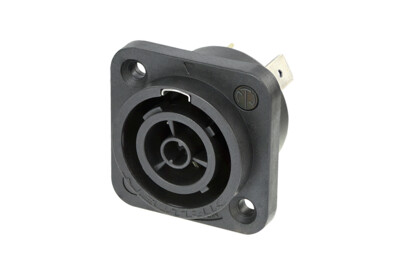

Appliance outlet connector, 1/4" flat tab terminals, without insulation divider for PCB mounting only. If nothing mounting on a PCB choose NAC3FPX-TOP
The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features & Benefits
- IP65 rating and certified outdoor protection to UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-FPX)
- Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-FPX)
- Uses high impact UV-resistant materials
- True mains connector with breaking capacity (CBC)
- Lockable 16 A single phase connector (USA: 20 A)
- Easy and reliable twist lock system
- Extremely robust and reliable
- Unique Neutrik cable retention
- ENEC certified according to IEC 60320
- UL498 certified
Downloads
NAC3FPX-WOT-TOP
stp - 3.79 MB
NAC3FPX-WOT-TOP
pdf - 369.76 KB
NAC3FPX-WOT-TOP
dxf - 1.65 MB
Neutrik TOP Products - NF23 V07 202111
pdf - 5.03 MB
BDA 545 V3 - powerCON TRUE1 TOP - NAC3FPX-TOP + NAC3FPX-WOT-TOP
pdf - 1.05 MB
CoC_Chassis_2018-07-03
pdf - 349.32 KB
UL 498 Certificate UL-CA-20110501
pdf - 331.75 KB
Technical Information
| Product | |
|---|---|
| Title | NAC3FPX-WOT-TOP |
| Electrical | |
|---|---|
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 1 GΩ (after damp heat test) |
| Number of electrical contacts | 2 + PE |
| Rated current per contact | 16 A (USA: 20A) |
| Rated voltage | 250 V ac |
| Mechanical | |
|---|---|
| Lifetime | > 5000 mating cycles |
| Wiresize | 2.5 mm² |
| Wiresize | 12 AWG |
| Material | |
|---|---|
| Contact plating | 2 µm Ag |
| Locking element | Stainless steel |
| Shell | Polyamide (PA 6.6) |
| Contacts | Spring Copper (CuSn0.2) |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Protection class | IP65, UL50E enclosure type 4 (mated or in combination with SCNAC-FPX) |
| Temperature range | -30°C to +80°C according to IEC 61984 -5°C to +40°C according to IEC 60320-1 |
| Solderability (for PCB) | Complies with IEC 68-2-20 |
