neutrik-us > Products > powerCON > powerCON 20 A > NAC3FCB-1

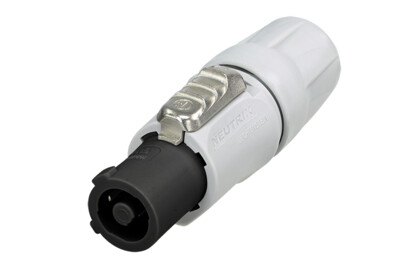

NAC3FCB-1

NAC3FCB-1

Lockable cable connector, power-out, screw terminals, grey, V-0 Insert

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Distributor Stock Search Technical Information
Download Data Sheet

Features & Benefits

  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • Unique Neutrik chuck type strain relief
  • Improved kink protection by two-component bushing
  • UL, cUL recognized components
    VDE certified
    SEV approved
  • V-0 Flammability rated insert
  • Circuit Breaking Capability (IEC 61984) when mated with powerCON XX Series Receptacles

Downloads

  • Assembly instruction powerCON Cable Connectors
  • Drawing NAC3FCB-1
  • Drawing NAC3FCB-1
  • 3D File NAC3FCB-1
  • Intertek Certificate IEC 61984 CB-Report NAC3MPB-1_NAC3FCB-1
  • Intertek Certificate IEC 61984 CB-Report NAC3MPXXB_NAC3FCB-1

Links

  • Intertek Certificate UL-1977 and CAN/CSA-C22.2 No.182.3
  • UL_Certificate (ECBT2.E135070)
  • cUL Certificate (ECBT8.E135070)

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

Technical Information

Product
Title NAC3FCB-1
Gender female
Electrical
Contact resistance ≤ 2 mΩ
Contact resistance 4 kVdc / 2.8 kVac
Insulation resistance > 10 GΩ (initial)
Number of electrical contacts 2 + PE
Rating Europe EN 61984:20 A 250 V AC
Rating USA UL 1977:20 A 250 V AC
Mechanical
Cable O.D. 6 - 15 mm (1)
Lifetime > 1000 mating cycles
Wiresize 2,5 mm²
Wiresize 12 AWG
Locking device Quick Lock
(1) Cable O.D. range limited to 6 mm - 14 mm acc. VDE
Material
Contact plating Ag
Contacts Copper Alloy
Insert Polyamide (PA 6.6)
Locking element Zinc diecast
Shell Polyamide (PA 6.6)
Strain relief Polyacetal
Environmental
Temperature range -30 °C to +80 °C
Protection class IP 20
Flammability Rating UL 94 V-0
