*** DISCONTINUED ***
Direct replacement/successor: NAC3FXXA-W-S (cable OD 6-12 mm) and NAC3FXXA-W-L (cable OD 10-16 mm)

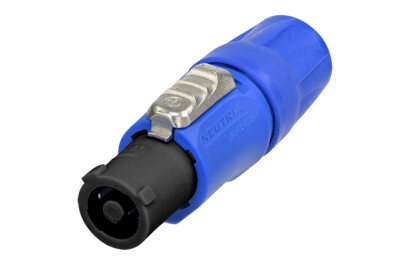

Lockable cable connector, power-in, screw terminals, blue, V-0 Insert
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Enter part number and search Neutrik USA distributor's stock.
Product | |
Title | NAC3FCA-1 |
Gender | female |
Electrical | |
Contact resistance | ≤ 2 mΩ |
Dielectric strength | 4 kVdc / 2.8 kVac |
Insulation resistance | > 10 GΩ (initial) |
Number of electrical contacts | 2 + PE |
Rating Europe | EN 61984:20 A 250 V AC |
Rating USA | UL 1977:20 A 250 V AC |
Mechanical | |
Cable O.D. | 6 - 15 mm (1) |
Lifetime | > 1000 mating cycles |
Wiresize | 2,5 mm² |
Wiresize | 12 AWG |
Locking device | Quick Lock |
(1) | Cable O.D. range limited to 6 mm - 14 mm acc. VDE |
Material | |
Contact plating | Ag |
Contacts | Copper Alloy |
Insert | Polyamide (PA 6.6) |
Locking element | Zinc diecast |
Shell | Polyamide (PA 6.6) |
Strain relief | Polyacetal |
Environmental | |
Temperature range | -30 °C to +80 °C |
Protection class | IP 20 |
Flammability Rating | UL 94 V-0 |
