neutrik-us > Products > NA3F5M
NA3F5M

NA3F5M

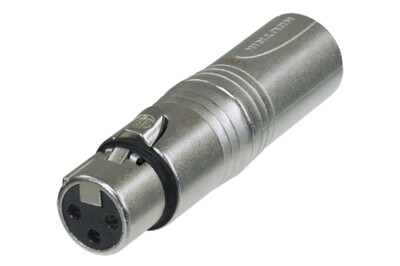

3 pole XLR female - 5 pole XLR male for lighting (DMX) applications

Download Data Sheet
Selection of topics
Features & Benefits Downloads Distributor Stock Search Technical Information
Download Data Sheet

Features & Benefits

  • Compact XLR 3 to 5 pole adapter for lighting (DMX) applications
  • Solve interconnection problems of the old (3-pole) and new (5-pole) DMX standard
  • Professional look and compact space saving design, based on the XX Series
  • Rugged diecast shell for best reliability

    Downloads

    • Drawing NA3F5M
    • Drawing NA3F5M
    • Product Guide - Section Accessories

    Distributor stock search

    Enter part number and search Neutrik USA distributor's stock.

    Technical Information

    Product
    Title NA3F5M
    Connection Type Adapter
    Electrical
    Contact resistance ≤ 3 mΩ
    Dielectric strength 1,5 kVdc
    Insulation resistance > 2 GΩ
    Rated current per contact 3 A
    Mechanical
    Insertion force < 20 N
    Withdrawal force < 20 N
    Lifetime > 1000 mating cycles
    Wiresize
    Locking device Latch lock
    Material
    Contact plating 2 µm Ag
    Contacts Bronze (CuSn6) (female)
    Insert Polyamide (PA 6.6 30 % GR)
    Shell Zinc diecast (ZnAl4Cu1)
    Shell plating Nickel
    Environmental
    Temperature range -30 °C to +80 °C
